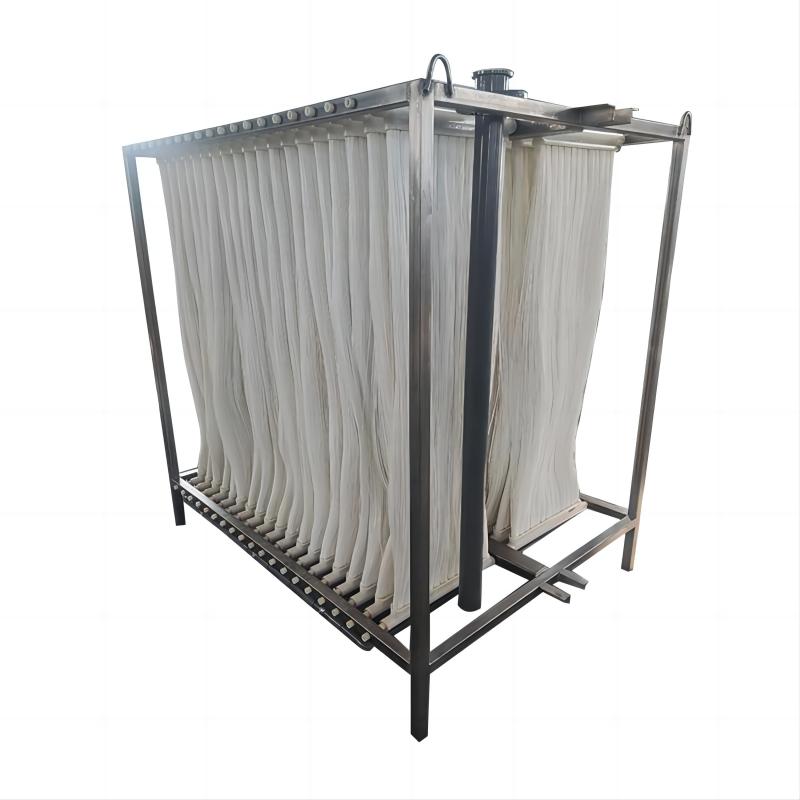

10 square meter Hollow Fiber Membrane With 0.04um Pore Size Good Tensile Strength 500N

10 square meter Hollow Fiber Membrane With 0.04um Pore Size Good Tensile Strength 500N



Hollow fiber membrane are widely used in membrane bio reactor and shows good performances for mbr wastewater treatment.

They are used in MBR STP with MBR SYSTEM  in MBR TANK.

Membrane filtration has a major role in water and wastewater treatment, which is superior to the conventional water technologies with a proven better performance and more efficient economics.



  • Item No :

    XMBR10m2
  • Order(MOQ) :

    10pcs
  • Payment :

    TT
  • Product Origin :

    China
  • Color :

    White, Gray, Black
  • Shipping Port :

    Shanghai
  • Lead Time :

    10 days
  • Weight :

    10kg
New Products



A Membrane bioreactor (MBR) processes are mainly used for wastewater treatment (WWT) by using microfiltration (MF) or ultrafiltration (UF) and integrating them with a biological process like a suspended growth bioreactorA membrane bioreactor is

essentially a replacement in the conventional activated sludge (CAS) system for the settlement tank for solid/liquid separation. The MBR gives to the end user improved process control and much better product water quality.

The MBR process operates over a considerably different range of parameters than the conventional activated sludge process

· SRT 5 -20 days for conventional system - 20 -30 days for MBR

· F/M 0.05 -1.5 d-1for conventional system - < 0.1 d-1for MBR

In general MBRs have three distinct membrane configurations (Fig.3),

1. Hollow fibre (HF)

2. Multitube (MT)

3. Flat sheet (FS)

Product Specifications

Model

JX-MBR-10

JX-MBR-15

JX-MBR-20

Membrane Surface Area

10 S.Q.M

15 S.Q.M

20 S.Q.M

Membrane Material

R-PVDF and PET

R-PVDF and PET

R-PVDF and PET

Pore Size

0.1-0.04um

0.1-0.04um

0.1-0.04um

Fiber Diameter

OD:1.9-2.2mm

ID:0.8-1.0mm

OD:1.9-2.2mm

ID:0.8-1.0mm

OD:1.9-2.2mm

ID:0.8-1.0mm

Flow Path

Out-in

Out-in

Out-in

Product Dimensions

Module Dimensions

 Reverse Osmosis Membrane

Length (A)

630mm

Width (B)

32mm

Height (C)

1000mm(10m2)

1500mm(15m2)

1960mm(20m2)

Weight

4-5kg per piece(10m2)

6-7kg per piece(15m2)

8-10kg per piece(20m2)



Operation Parameters:

Appearance

Hollow fiber

Membrane material

R-PVDF

Effective membrane area(m2)

10m2

15m2

20m2

Design Flux m3/0.1 Mpa 25℃

10-40l/m2/H

Filter Type

Immersion suction filtration

Component Connection Mode

Plug in

Type of nozzle

/

Connecting pipe

32

Packaging material of membrane module

Plastic and Wooden Case

Service temperature

5-45℃

Operating pressure

<=0.3MPa

PH range

1-14

Molecular weight cut off (Dal)

67000-100000

Membrane material

Hydrophilicity PVDF (PET lining)

Membrane pore size

0.1um/0.04um

Porosity

>70%

Initial water yield

>300L/m2·h

Design flux

10-40L/m2·h

PH range

1-12

Operating temperature range

5-45℃

Aeration rate

Gas water ratio 15:1-20:1



2.MBR Application

When MBR is your first choice ?

1. Limited space or you want to use space efficiently.

2. End user requires high quality treated water(e.g. for water reuse)



Although the MBR global market is mainly dominated by a few major companies, the number of technology suppliers continues to grow, with over 70 MBR membrane module products available on the market today.

In general MBRs have been applied to treat effluent in a number of industrial sectors, like:

1.food and beverage − high in organic loading

2.petroleum industry − exploration, refining and petrochemical sectors

3.pharmaceutical  industry – have active pharmaceutical ingredients (APIs)

4.pulp and paper industry − high levels of suspended solids, COD and BOD

5.textile industry effluent − re-biodegradability, toxicity, FOG content and color

6.landfill leachate − wide variety of dissolved and suspended organic and inorganic compounds

7.ship effluents − legislative requirements and space restrictions.

8.Industrial versus municipal treatment

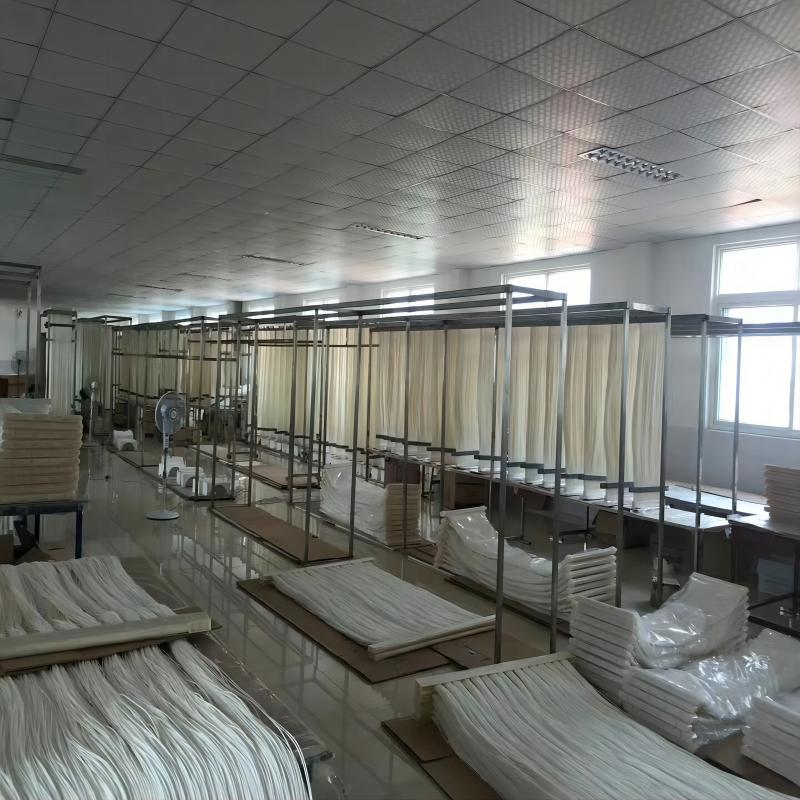

Process and  Workshop

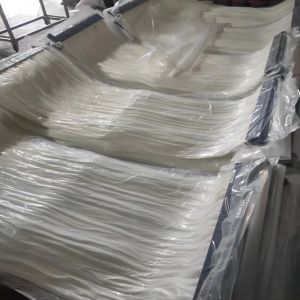

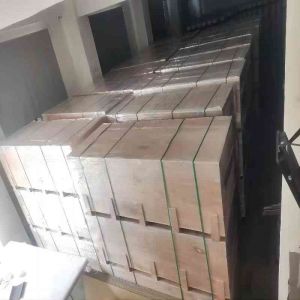

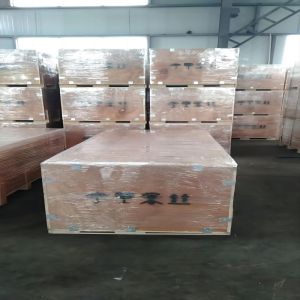

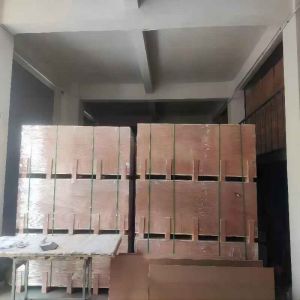

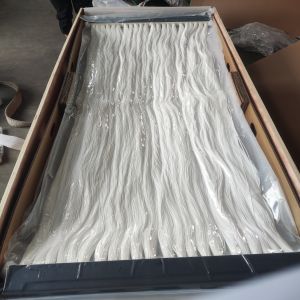

Package and Transportation
