20 Square Meter Hollow Fiber Membrane With 0.04um Pore Size Good Tensile Strength 500N

A Membrane bioreactor (MBR) processes are mainly used for wastewater treatment (WWT) by using microfiltration (MF) or ultrafiltration (UF) and integrating them with a biological process like a suspended growth bioreactorA membrane bioreactor is

essentially a replacement in the conventional activated sludge (CAS) system for the settlement tank for solid/liquid separation. The MBR gives to the end user improved process control and much better product water quality.

The MBR process operates over a considerably different range of parameters than the conventional activated sludge process

· SRT 5 -20 days for conventional system - 20 -30 days for MBR

· F/M 0.05 -1.5 d-1for conventional system - < 0.1 d-1for MBR

In general MBRs have three distinct membrane configurations (Fig.3),

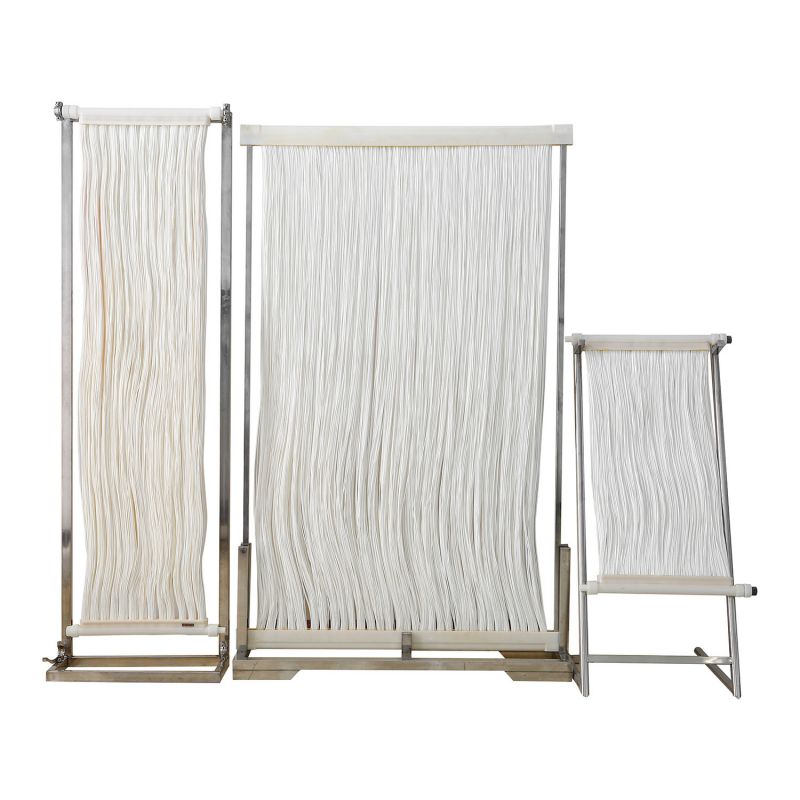

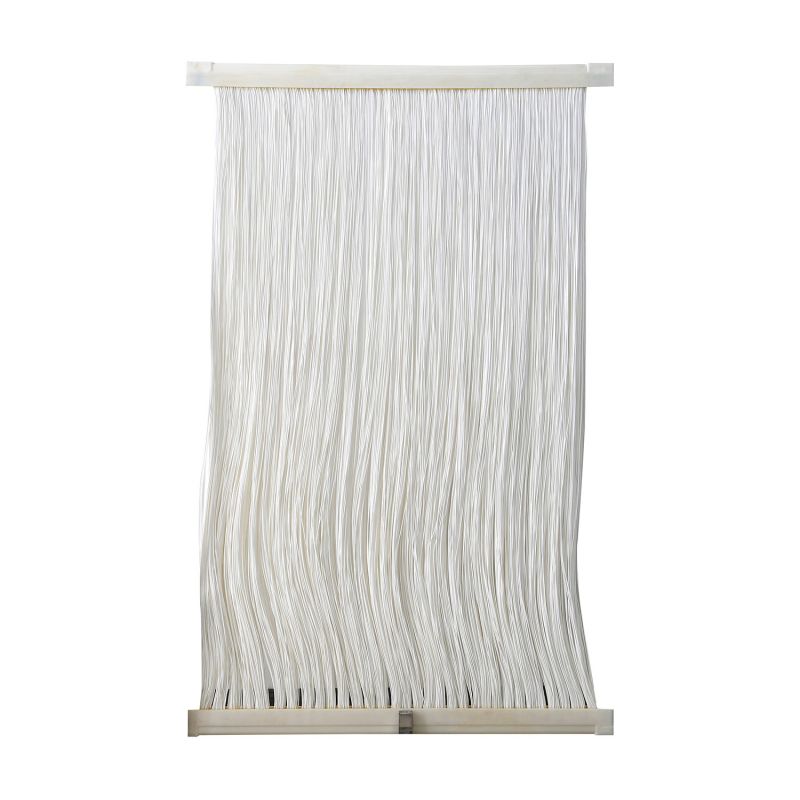

1. Hollow fibre (HF)

2. Multitube (MT)

3. Flat sheet (FS)

2.MBR Application

When MBR is your first choice ?

1. Limited space or you want to use space efficiently.

2. End user requires high quality treated water(e.g. for water reuse)

Operation Parameters:
