40 ㎡ equivalent Mitsubishi MBR membrane 0.05um Pore Size Japan Mitsubishi
40 ㎡ equivalent Mitsubishi MBR membrane 0.05um Pore Size Japan Mitsubishi
Hollow fiber membrane are widely used in membrane bio reactor and shows good performances for mbr wastewater treatment.
They are used in MBR STP with MBR SYSTEM in MBR TANK.
Membrane filtration has a major role in water and wastewater treatment, which is superior to the conventional water technologies with a proven better performance and more efficient economics.
Item No :
Equivalent Mitsubishi MBR 40m2Order(MOQ) :
10pcsPayment :
TTProduct Origin :
ChinaColor :
White, Gray, BlackShipping Port :
ShanghaiLead Time :
10 daysWeight :
20kg
| Membrane Shape | Hollow Fiber Membrane |
| Filter Type | Outside-In (Feed water from outside of hollow fiber membrane) |
| Membrane Materials | PVDF |
| Membrane Aperture | UF membrane (0.1um, 0.05um) |
| Filter the Object | General bacteria, pollutants, microparticles. etc. |

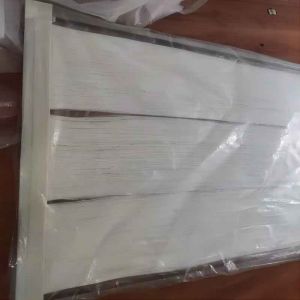

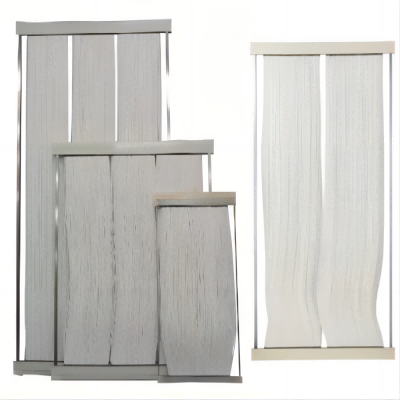

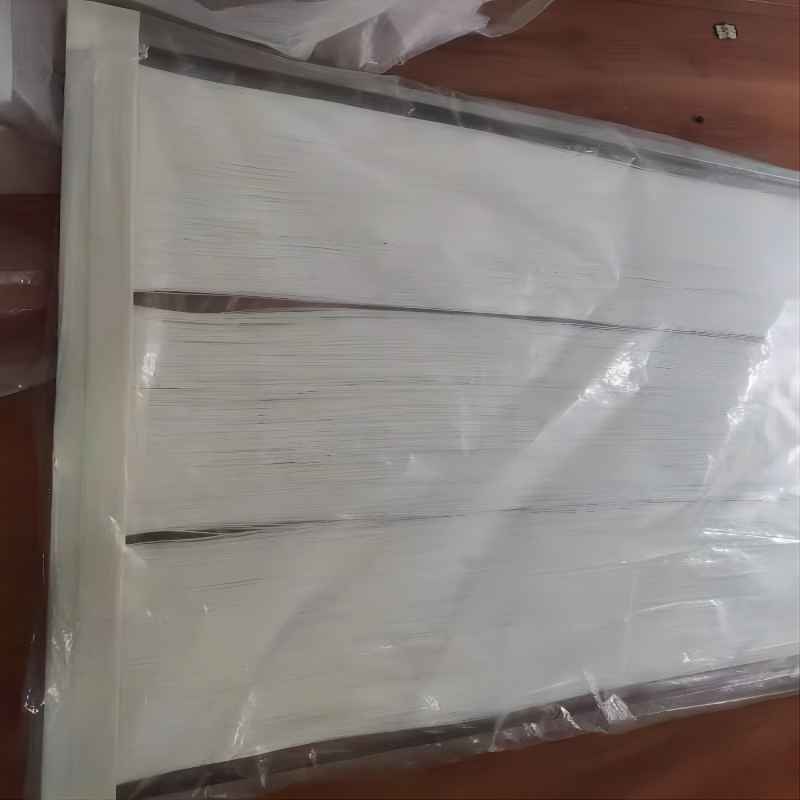

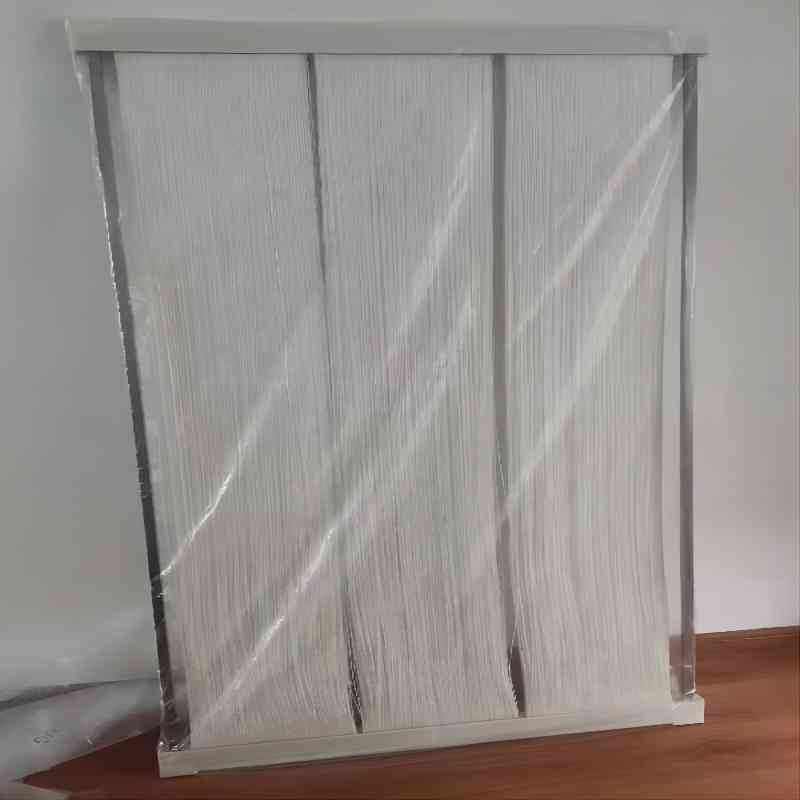

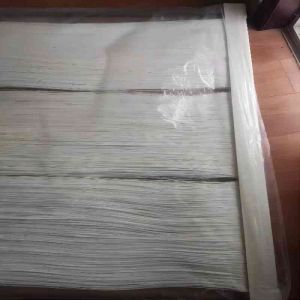

Details Pictures
Specification
| Model | XMBR40 | XMBR25 | XMBR15/18 | XMBR6 | |
| Nominal Membrane Area | 40㎡ | 25㎡ | 15/18㎡ | 6㎡ | |
| Engineering aperture | 0.04um/0.1um | ||||
| External Diameter | 2.2mm/1.9mm | ||||
| Membrane Size(D*W*H) | 30*1250*2000mm | 30*1250*2000mm | 30*1250*1300mm | 30*620*1015mm | |
| Service Condition | Filter Water | 8-32 m³/d | 5-20 m³/d | 3-20 m³/d | 1.2-4.8 m³/d |
| Common pressure difference | Initial pressure difference +15Kpa | ||||
| Operation Parameters | Common pressure difference | 5-40℃ | |||
| Water inlet pH range | 5-9 | ||||
| Water and oil are divided into areas | N-hexane extract below 150 mg/L (except mineral oil) | ||||
| Drug wash pH range | 1-11 | ||||
| MLSS scope | Recommended application range:5000-12000 mg/L (min: 3000 mg/L, max: 15000 mg/L) | ||||
2.MBR Application
When MBR is your first choice ?
1. Limited space or you want to use space efficiently.
2. End user requires high quality treated water(e.g. for water reuse)
Although the MBR global market is mainly dominated by a few major companies, the number of technology suppliers continues to grow, with over 70 MBR membrane module products available on the market today.
In general MBRs have been applied to treat effluent in a number of industrial sectors, like:
1.food and beverage − high in organic loading
2.petroleum industry − exploration, refining and petrochemical sectors
3.pharmaceutical industry – have active pharmaceutical ingredients (APIs)
4.pulp and paper industry − high levels of suspended solids, COD and BOD
5.textile industry effluent − re-biodegradability, toxicity, FOG content and color
6.landfill leachate − wide variety of dissolved and suspended organic and inorganic compounds
7.ship effluents − legislative requirements and space restrictions.
8.Industrial versus municipal treatment

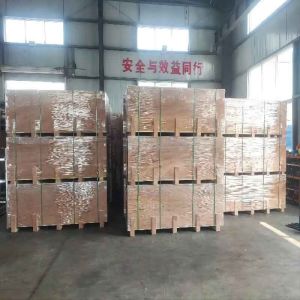

Package and Transportation
X MEMBRANE was found in 2014. It is a professional manufacturer which engaged in wastewater industry and supply essential membranes to the engineering companies or the end user.
Address : No. 68-16, Shijiu Lake North Road, Chunxi Town, Gaochun District, Nanjing City, Jiangsu Province, China 210000
