Equivalent Suez Zeeweed 500D MBR Modules & 48M Cassette

Home

Hollow fiber MBR Membrane

Equivalent Suez Zeeweed 500D MBR Modules & 48M Cassette

Equivalent Suez Zeeweed 500D MBR Modules & 48M Cassette



Suez zeeweed 500D now sold to Veolia Group and we know that its predecessor is from Canada ZENON.

We have to admit that the United States, Japan, Europe in the film manufacturing industry leading the world.

They vigorously developed their materials industry during the two industrial revolutions.

Although China's film industry started late, but the development speed is fast.

At present, Chinese factories have been able to produce film filaments with the same performance, and the water production and water quality have fully met the requirements of customers.

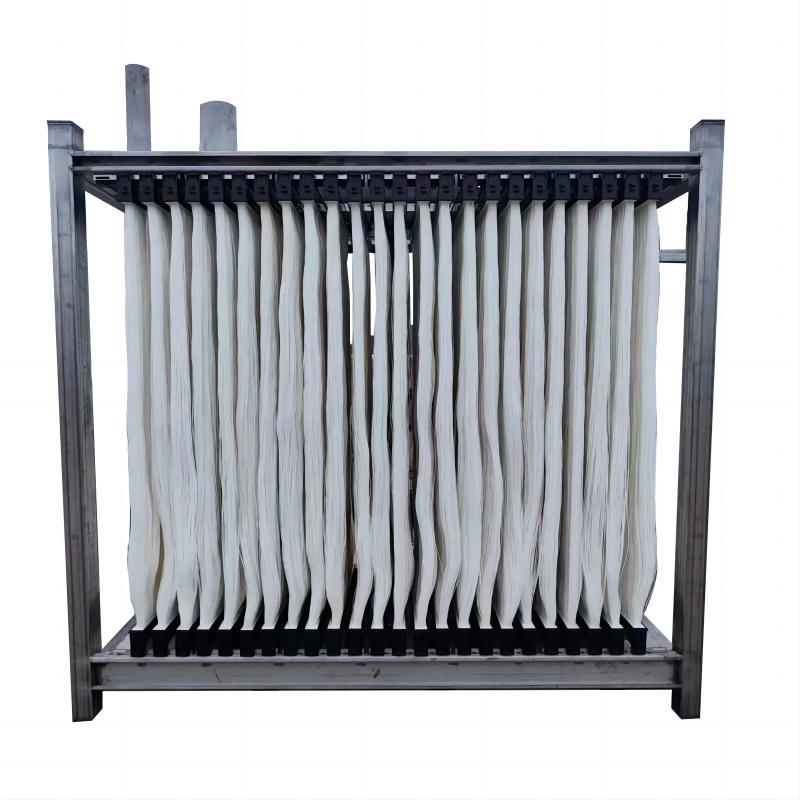

We can supply you same dimensions as well as same quality like suez 500D and can also supply 48M cassette with 316,316L, Duplex 2205 materials.

  • Item No :

    XMBR--Equivalent 500D
  • Order(MOQ) :

    10pcs
  • Payment :

    TT
  • Product Origin :

    China
  • Color :

    White, Gray, Black
  • Shipping Port :

    Shanghai
  • Lead Time :

    10 days
  • Weight :

    28kg
New Products



Specifications:

Product Nominal Membrane Surface Area (㎡) Max.Shipping weight kg Lifting Weight kg Material  Nominal Pore size (um) Surface Properties Fiber Diameter(mm) Flow Path
X-MBR27.9 27.9 23   PVDF 0.04 Non-ionic & Hydrophlic

OD:1.9

ID:0.8

Outside-in
X-MBR31.6 31.6 26
X-MBR34.4 34.4 28
X-MBR-40.9 40.9 33

Operating & Cleaning Specifications

Product TMP Range kPa (psig) Max. Operating Temp. ℃  Operating pH Range Max. Cleaning Temp. ℃ Cleaning pH Range Max. Cl2 Conc'n (ppm)
X-MBR-27.9 -55-55 40 5.0-9.5 40  2.0-10.5 1000
X-MBR-31.6
X-MBR-34.4
X-MBR-40.9

Product Dimensions:

Module Dimensions



Length (A)

844mm

Width (B)

49mm

Height (C)

1835(27.9m2)

2184mm(31.6m2/34.4m2/40.9m2)



2.MBR Application

When MBR is your first choice ?

1. Limited space or you want to use space efficiently.

2. End user requires high quality treated water(e.g. for water reuse)



Although the MBR global market is mainly dominated by a few major companies, the number of technology suppliers continues to grow, with over 70 MBR membrane module products available on the market today.

In general MBRs have been applied to treat effluent in a number of industrial sectors, like:

1.food and beverage − high in organic loading

2.petroleum industry − exploration, refining and petrochemical sectors

3.pharmaceutical  industry – have active pharmaceutical ingredients (APIs)

4.pulp and paper industry − high levels of suspended solids, COD and BOD

5.textile industry effluent − re-biodegradability, toxicity, FOG content and color

6.landfill leachate − wide variety of dissolved and suspended organic and inorganic compounds

7.ship effluents − legislative requirements and space restrictions.

8.Industrial versus municipal treatment
