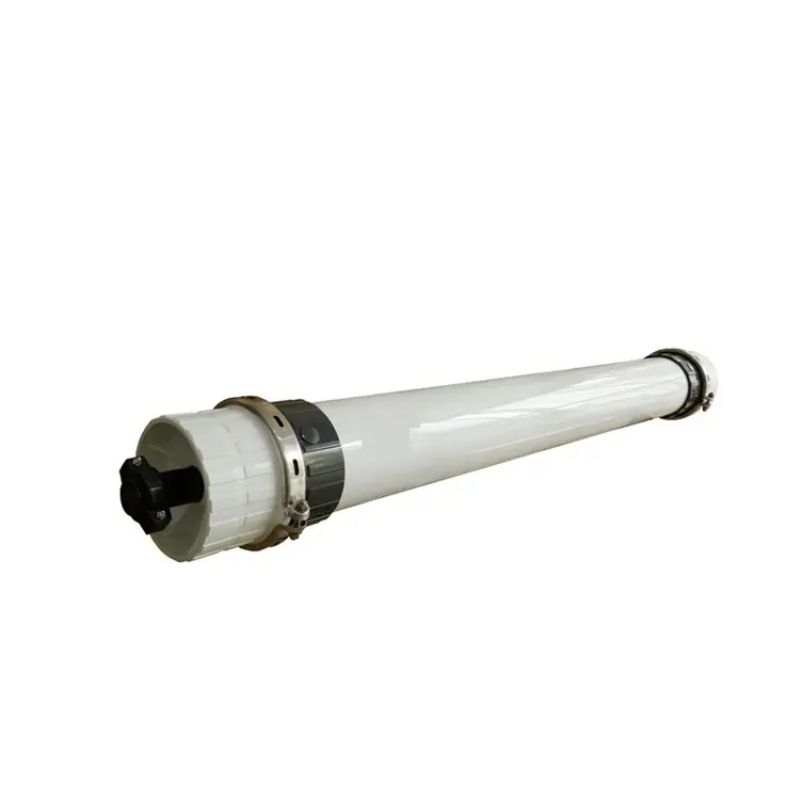

UF0880 Replacement OF DOW SFP2880 5 years Warranty High Flux UF Module Membrane
UF0880 Replacement OF DOW SFP2880 5 years Warranty High Flux UF Module Membrane
Item No :
UF0880Order(MOQ) :
10Payment :
TransferProduct Origin :
Jiangsu,ChinaColor :
WhiteShipping Port :
ShanghaiLead Time :
7-15daysWeight :
61kgUF0880 Replacement OF Dow SFP2880 High flux 5 years Warranty UF Module Membrane
Product Deacription:
Performance ： （For most feed waters）
Permeate Capacity： 3-9M3/H
Permeate Turbidity ： ≤0.1NTU
Permeate SDI15： ≤2.5
Material: High Crystallinity PVDF
Nominal Pore Size: 0.08µm
Effective Membrane Area: 77m2
Fiber Dimensions: ID(0.6mm), OD(1.2mm)
Module Dimensions： Φ225m×2360mm
Weight： 61KG（Empty）100KG（water Filled）
Application Data：
Typical Permeate Range： 40—120L/㎡/h（25℃）
Maximum Applied Feed Pressure： 5Bar
Maximum Transmembrane Pressure：2.1Bar
Maximum Feed Turbidity : 300NTU
Temperature Range ： 1-40℃
pH Range： 1－11 for Operating /1－14 for Chemical cleaning
Maximum Backwash pressure： 2.5Bar
Backwash Range： 50-150LMH
Air Scour pressure： ≤2.5Bar
Air Scour Rate： 3－8Nm³/h/PC
Operating Mode： Outside to Inside/ Dead end or Cross Flow
Typical Process Conditions：
Air Scour Frequency： Once every 20-60min
Air Scour Duration: 20-60 Seconds
Back wash Frequency: Once every 20-60min
Back wash Duration： 30-90Seconds
Cleaning Chemicals: NaCLO（>5000ppm）, NaOH（≤5%）,HCl, H2SO4 or Citric Acid
|

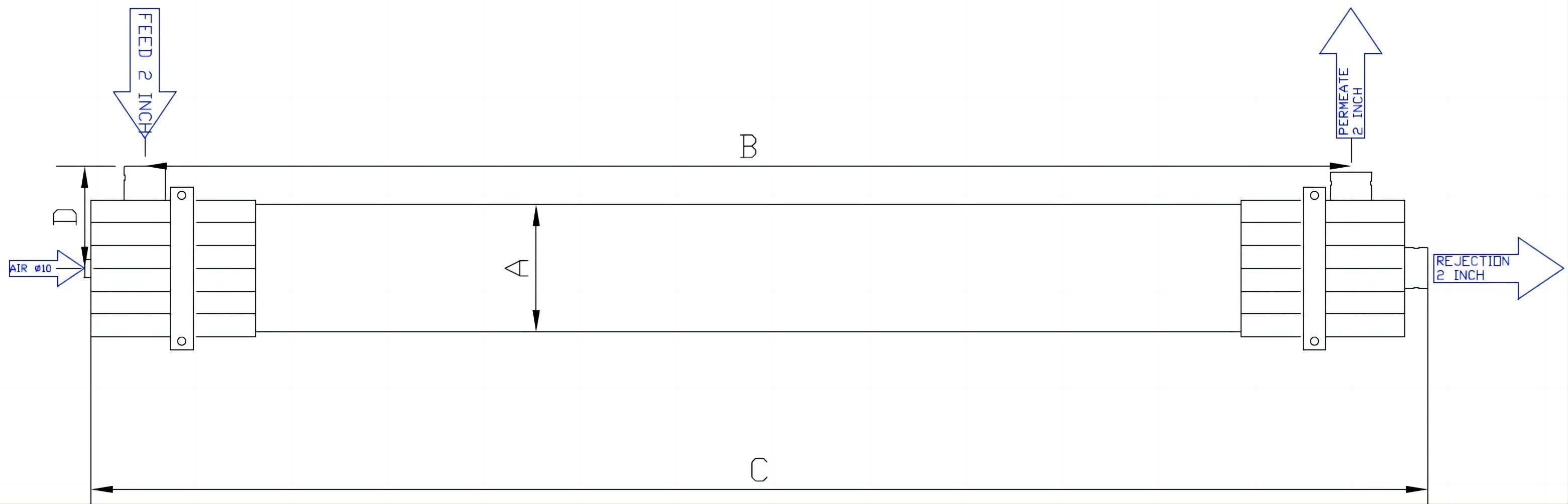

A |
B |
C |
D |
|
225mm |
2130mm |
2360mm |
180mm |
|
Item |
Component name |
Specification |
Material |
Qty. |
Unit |
Note |
|
1 |
Ultrafiltration membrane module |
Φ225mmX |
UPVC |
1 |
set |
Refer to package instructions for specific models; Main white |
|
2 |
Copy forest adapter |
DN50 |
UPVC |
3 |
unit |
Copy forest transposition; grey |
|
3 |
Water producing transparent tube |
DN50 X L200mm |
UPVC |
1 |
unit |
PN10; Wall thickness 4mm |
|
4 |
Intake pipe adapter |
G3/8" X Φ10mm |
POM |
1 |
piece |
Thread turn quick insert |
|
5 |
The membrane module is backed by a rubber support |
L270 X 50 X 38mm/220mm |
UPVC |
2 |
unit |
Bolt hole spacing 220mm; grey |
|
6 |
Membrane components with hoops |
Φ225 X L550mm |
SS304 |
2 |
unit |
Bush EPDM rubber |
|
|
|
|||||
|
1. Ultrafiltration membrane components * 1 group |
2, copy forest adapter * 3 pieces |
|||||
|
|
|
|||||
|
3, water production transparent tube * 1 piece |
4, the intake pipe adapter * 1 |
|||||
|
|
 |
|
|
5, membrane module back cushion rubber support * 2 pieces |
|
6, film component with hoop * 2 pairs |
Package size
The membrane modules are added with glycerin protective liquid, and they are individually packaged when leaving the factory. The membrane modules are wrapped in plastic film bags, sealed and placed in a rigid cardboard box with shock-proof and fixing measures.
Storage (use) precautions
If the membrane module is not installed and used temporarily, it should be stacked on a flat and clean indoor floor, away from cold and heat sources, to ensure that there is no corrosion and pollutants around; the storage temperature is controlled at 5-40 °C, and the recommended storage temperature is 20-35 °C .
Warranty
5 years warranty.
Keep the membrane modules in the original packaging as much as possible. Under the above storage conditions, unopened new membrane modules can be stored for 2 years.
Disclaimer
The indicators and data given in this document are based on our existing technical knowledge level and practical experience and are for reference only. The specific guarantee indicators are otherwise agreed in the technical
agreement or supply contract
Subject to agreement. It is the user's responsibility to test the products purchased by our company to verify
whether they are suitable for the ir respective proposed processes and uses, and to achieve the intended purpose. user to me
The conditions and methods of using the company's products are beyond the control of our company, therefore, our company is not responsible for the results and damages arising from the use of such information and data. Our company technical support and
The customer service center is willing to provide you with product consulting and application technical services. Welcome to contact us by letter or call.
