UF0770 Replacement OF Zw-1500 5 years Warranty UF Module Membrane

UF0770 Replacement OF Zw-1500 5 years Warranty UF Module Membrane

Features of JX Thermally Induced Phase Separation(TIPS) Uf membrane

High permeate flux is achieved by the use of membrane with exceptionally high permeability. It is possible to set
the design flux at 5-6m3/m2/day. With clean feed water such as underground water ,pretreated water , etc.
  • Item No :

    UF0770
  • Order(MOQ) :

    10
  • Payment :

    Transfer
  • Product Origin :

    Jiangsu,China
  • Color :

    White
  • Shipping Port :

    Shanghai
  • Lead Time :

    7-15days
  • Weight :

    50kg
New Products

UF0770 Replacement OF Zw-1500 5 years Warranty UF Module Membrane

Product Deacription:



Hollow fiber membrane manufactured by X factory provide superb mechanical strength and chemimcal
resistance.

Product Sepcification:



Performance                     For most feed waters

Permeate Capacity                2.5-6.7/

Permeate Turbidity                ≤0.1NTU

Permeate SDI15                    ≤2.5

Material:                                  High Crystallinity PVDF

Nominal Pore Size:                    0.02µm

Effective Membrane Area:             55.7

Fiber Dimensions:                      ID(0.6mm), OD(1.2mm)

Module Dimensions                Φ180m×1920mm

Weight                               37KGEmpty80KGwater Filled

Application Data

Typical Permeate Range             45—120L//h25℃

Maximum Applied Feed Pressure    3.5Bar

Maximum Transmembrane Pressure2.5Bar

Maximum Feed Turbidity :              300NTU

Temperature Range               1-40℃

pH Range                          111 for Operating /114 for Chemical cleaning

Maximum Backwash pressure      2.5Bar

Backwash Range                    1.8m³/H/PCS

Air Scour pressure                  ≤2.5Bar

Air Scour Rate                    38Nm³/h/PC

Operating Mode                     Outside to Inside/ Dead end or Cross Flow

Typical Process Conditions

Air Scour Frequency                Once every 20-60min

Air Scour Duration:                    20-60 Seconds

Back wash Frequency:                Once every 20-60min

Back wash Duration              30-90Seconds

Cleaning Chemicals:       NaCLO>5000ppm, NaOH≤5%,HCl, H2SO4 or Citric Acid

Item

Component name

Specification

Material

Qty.

Unit

Note

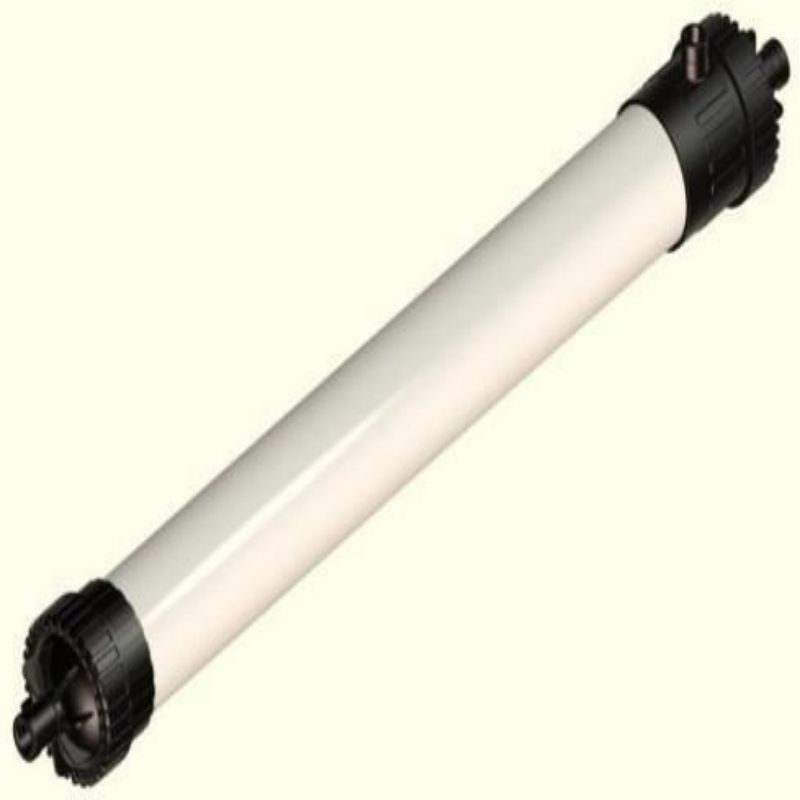

1

Ultrafiltration

membrane

module

Φ180mm

UPVC

1

set

Main white

2

Copy forest

adapter

DN50

UPVC

2

unit

Copy forest transposition; grey

3

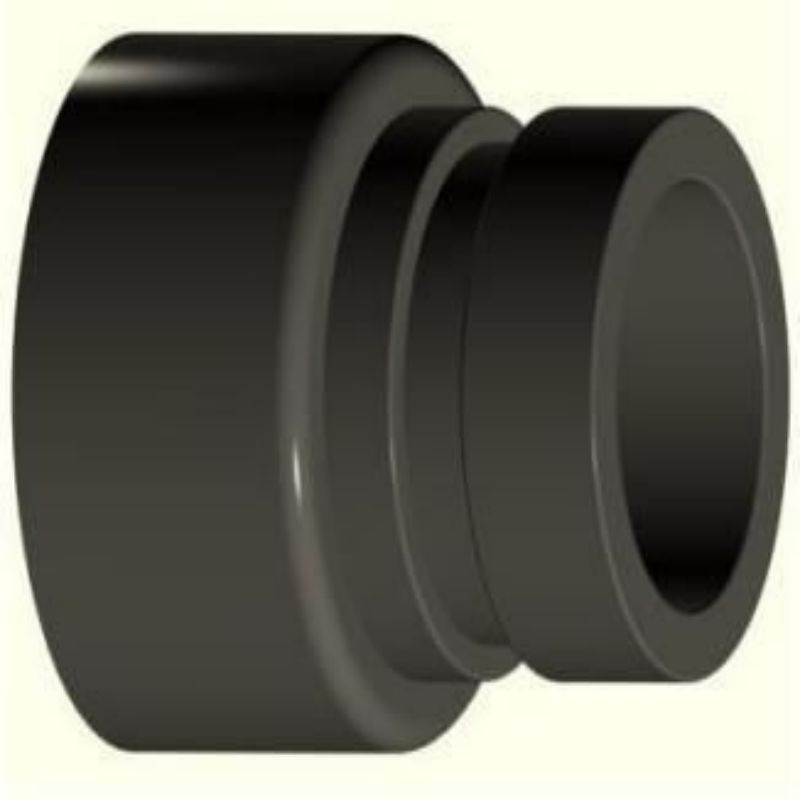

Copy forest adapter



DN40

UPVC

1

unit

Copy forest transposition; grey

4

The membrane module is

backed by a

rubber support

L135mm;W39mm;H34mm

UPVC

2

unit

Black, center hole with M6 bolts

5

Rubber support with hoops

L392mm;W30mm;M8

SS304

2

unit

Bush EPDM rubber



1、Ultrafiltration

membrane

components * 1

set







2、Copy Forest Adapter * 2pcs

3、Copy Forest Adapter * 1pcs

1. High permeate flux
High permeate flux is achieved by the use of membrane with exceptionally high permeability. It is possible to set
the design flux at 5-6m3/m2/day. With clean feed water such as underground water ,pretreated water , etc.
2. Long operating life
Hollow fiber membrane manufactured by JX factory provide superb mechanical strength and chemimcal
resistance.
3. Precise separation characteristics
Membrane with sharp and uniform pore size distribution produces high quality water without adding coagulants
(turbidity of treated water is below 0.1NTU).
4. Applicable for raw water with high turbidity
Direct treatment of raw water with high turbidity is possible, owing to its unique structure of module for easy
discharge of solids, highly efficient flux maintenance method of simultaneous reverse filtration and air
Membrane deterioration by chemicals or biolysis is not a concern in general use. possibleBig flux and less
membranes scrubbing.
Application :
Various water treatment process (Drinking water for food and beverage plant, various cleaning water )
Treatment of sewage and waste water(Advanced treatment of sewage, recovery of industrial wastewater, coke
wastewater , treatment of landfill leachate)
Pretreatment of RO/NF (Desalination of sea water , UPW production process, etc.)
Purification of Sea Water (Deep-layer water in ocean, aquarium, aquafarming water)
Treatment of condensate and recycled water (Boiler , heat exchanger, swimming pool, landscaping water)
Strong acid and alkali resistance pH1-14
15 years lifetime,big flux and will not decrease in 3 years

Industrial Water Filter System UFWaste Water treatment Ultrafiltration Filtration MembraneUltrafiltration membrane
