0.1-0.15Mpa XUF0860 Feed Water Pressure PVDF Ultrafiltration Membrane for Chemical Industry
0.1-0.15Mpa XUF0860 Feed Water Pressure PVDF Ultrafiltration Membrane for Chemical Industry
UF0860 replacement for DOW SFP2860
Ultrafiltration membrane belongs to capillary hollow fiber membrane,It is a polymer material membrane,It is a separation product without phase change.With the material of modified PVDF and PES, It has good water permeability, mechanical properties, chemical resistance and pollution resistance. The Module type is Outside-in(PVDF) and Inside-out(PES). It can filter various harmful substances such as bacteria, colloids, suspended solids and microorganisms which are in the feed water.
Item No :
X-UF0860Order(MOQ) :
10Payment :
TransferProduct Origin :
Jiangsu,ChinaColor :
whiteShipping Port :
ShanghaiLead Time :
7-15daysWeight :
50kg0.1-0.15Mpa XUF0860Feed Water Pressure PVDF Ultrafiltration Membrane for Chemical Industry
Product descriptcion
External pressure ultrafiltration is widely used in condensate, circulating water, sewage treatment, etc., and is often used in the pretreatment of NF&RO processes, such as reclaimed water reuse, factory drainage, seawater desalination and other fields.
Specification
|
Performance ： （For most feed waters） |
|
Permeate Capacity： 2-6㎥/ｈ |
|
Permeate Turbidity ： ≤0.1NTU |
|
Permeate SDI15： ≤2.5 |
|
Material: High Crystallinity PVDF |
|
Nominal Pore Size: 0.08µm |
|
Effective Membrane Area: 51㎡ |
|
Fiber Dimensions: ID(0.6mm), OD(1.2mm) |
|
Module Dimensions： Φ225m×1860mm |
|
Weight： 48KG（Empty）83KG（water Filled） |
|
Typical Permeate Range： 40—120L/㎡/h |
|
Maximum Applied Feed Pressure： 5Bar |
|
Maximum Transmembrane Pressure： 2.1Bar |
|
Maximum Feed Turbidity : 300NTU |
|
Temperature Range ： 1-40℃ |
|
pH Range： Operating1－11 /Chemical Cleaning1－14 |
|
Maximum Backwash pressure： 2.5Bar |
|
Backwash Range： 50－150LMH |
|
Air Scour Pressure： ≤2.5Bar |
|
Air Scour Rate： 3－8Nm³/h/PC |
|
Operating Mode： Outside to Inside/ Dead end or Cross Flow |
|
Air Scour Frequency： Once every 20-60min |
|
Air Scour Duration: 20-60 Seconds |
|
Back wash Frequency: Once every 20-60min |
|
Back wash Duration： 30-90Seconds |
|
Cleaning Chemicals： NaCLO（>5000ppm）, NaOH（≤5%）,HCl, H2SO4 or Citric Acid |
|

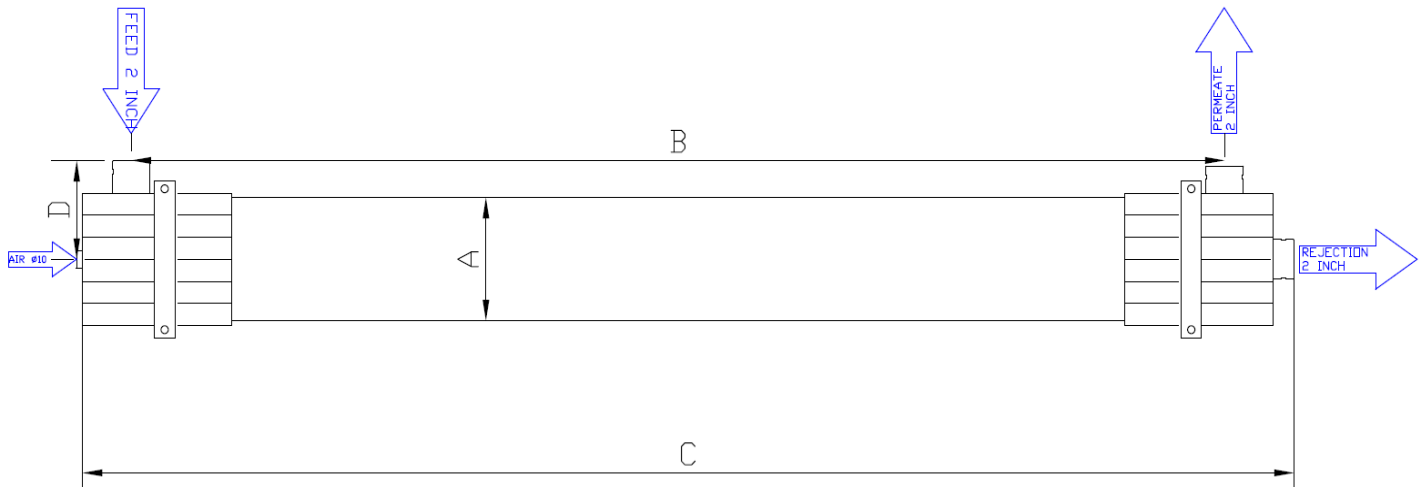

A |
B |
C |
D |
|
225mm |
1600mm |
1860mm |
180mm |
Product advantages:
1.External pressure ultrafiltration is made of PVDF hollow fiber membrane and has the following characteristics:
2.High flux, effectively reducing the usage of membrane modules.
3.Uniform pore size distribution, efficient removal of bacteria and particulate matter, and effective guarantee of effluent quality.
4.High strength and high chemical resistance, reduce membrane damage caused by chemical corrosion or biological decomposition, effectively prolong the mission of the membrane.
Applications;
External pressure ultrafiltration is widely used in condensate, circulating water, sewage treatment, etc., and is often used in the pretreatment of NF&RO processes, such as reclaimed water reuse, factory drainage, seawater desalination and other fields.

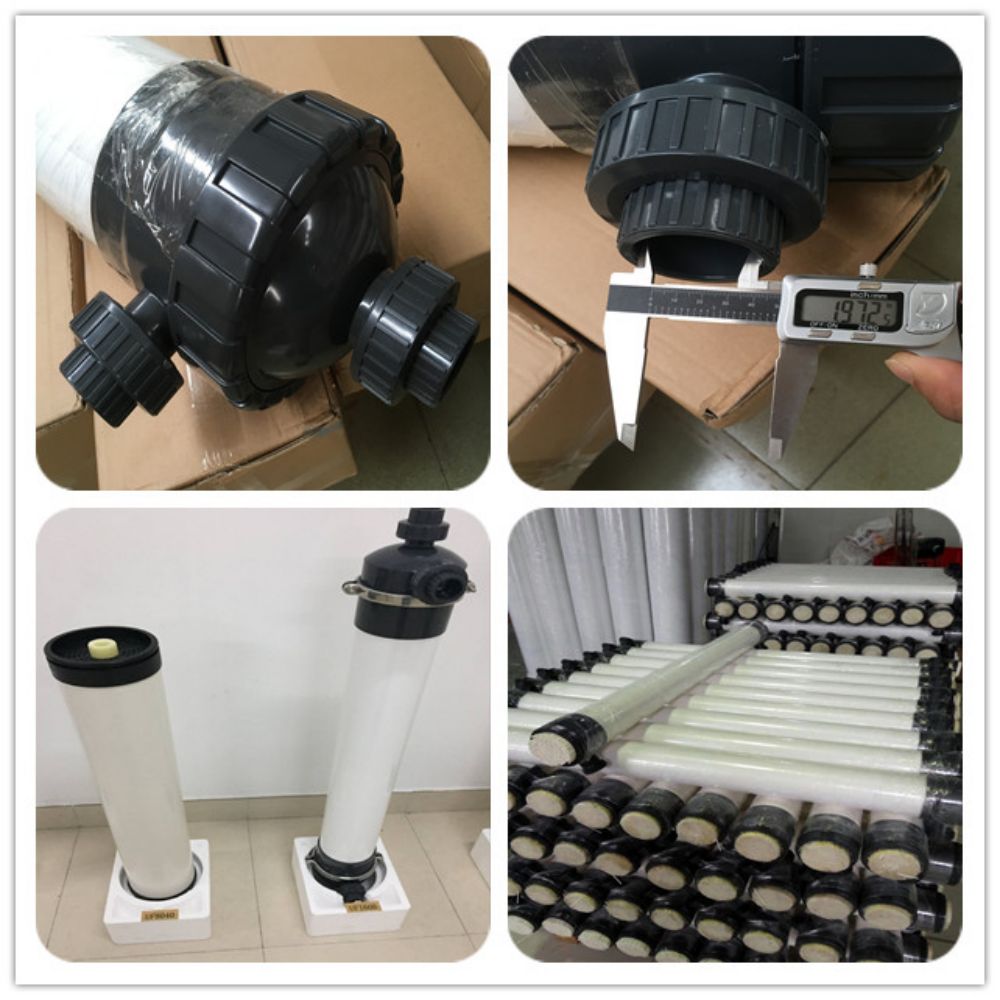

Package size
The membrane modules are added with glycerin protective liquid, and they are individually packaged when leaving the factory. The membrane modules are wrapped in plastic film bags, sealed and placed in a rigid cardboard box with shock-proof and fixing measures.
Storage (use) precautions
If the membrane module is not installed and used temporarily, it should be stacked on a flat and clean indoor floor, away from cold and heat sources, to ensure that there is no corrosion and pollutants around; the storage temperature is controlled at 5-40 °C, and the recommended storage temperature is 20-35 °C .
Warranty; 5 years warranty
Keep the membrane modules in the original packaging as much as possible. Under the above storage conditions, unopened new membrane modules can be stored for 2 years.
Disclaimer
The indicators and data given in this document are based on our existing technical knowledge level and practical experience and are for reference only. The specific guarantee indicators are otherwise agreed in the technical agreement or supply contract
X MEMBRANE was found in 2014. It is a professional manufacturer which engaged in wastewater industry and supply essential membranes to the engineering companies or the end user.
