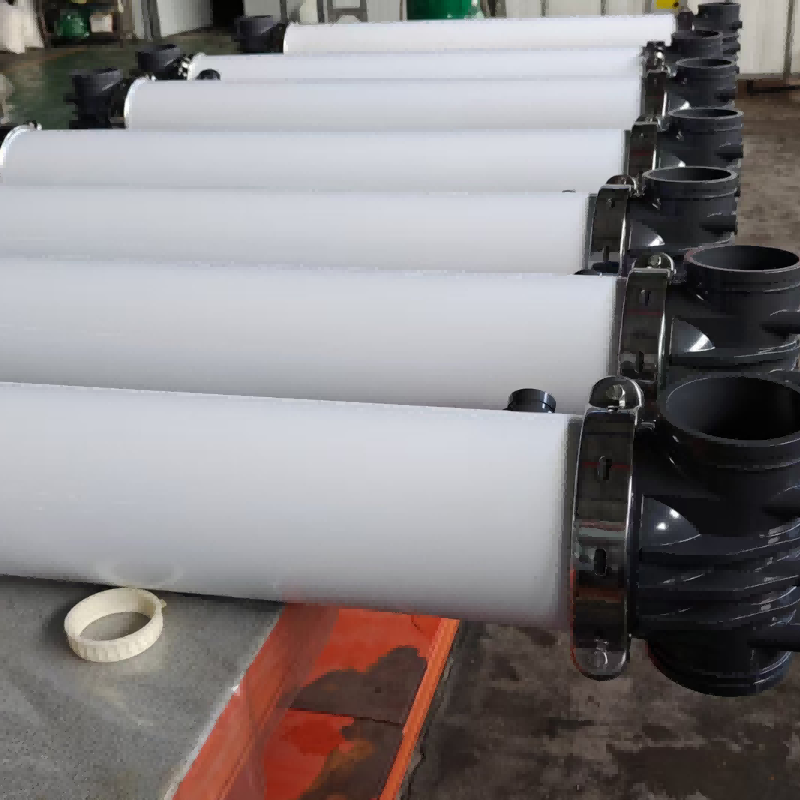

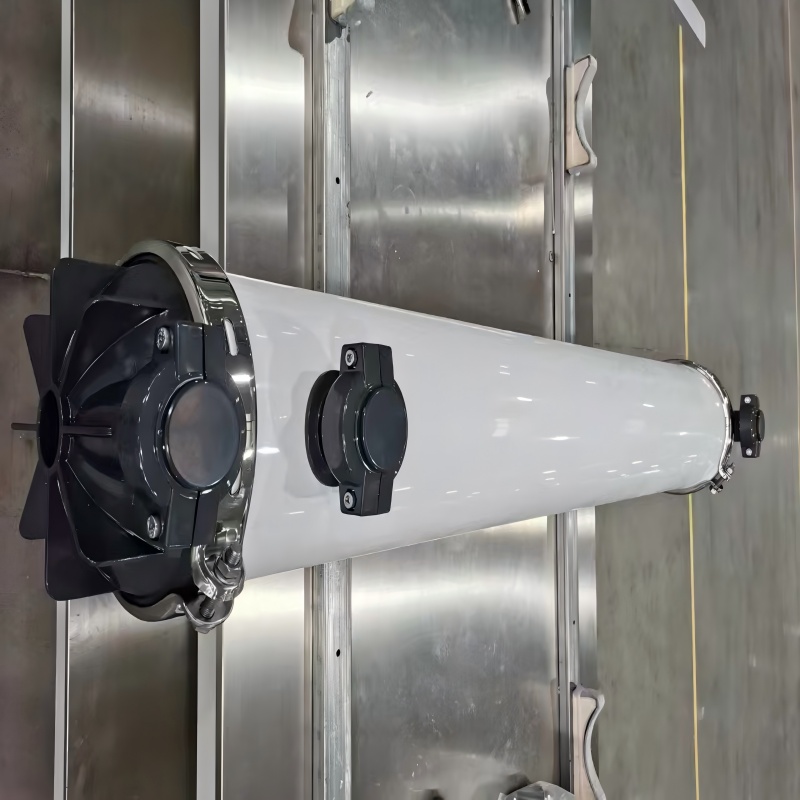

X250UF dizzer XL 0.9MB Good Quality UItrafiltration treatment membrane filter
X250UF dizzer XL 0.9MB Good Quality UItrafiltration treatment membrane filter
X250XL replacement for INGE
Effective water treatment usually requires a combination of different methods and technologies.This combination depends on the destination of the purified water (e.g. drinking water, industrial process water for power stations, etc.) as well as the quality and degree of contamination of the raw water.
Item No :
X250XLOrder(MOQ) :
10Payment :
TransferProduct Origin :
Jiangsu,ChinaColor :
whiteShipping Port :
ShanghaiLead Time :
15daysWeight :
65kgX250UF dizzer XL 0.9MB Good Quality UItrafiltration Treatment Membrane Filter
Product Description

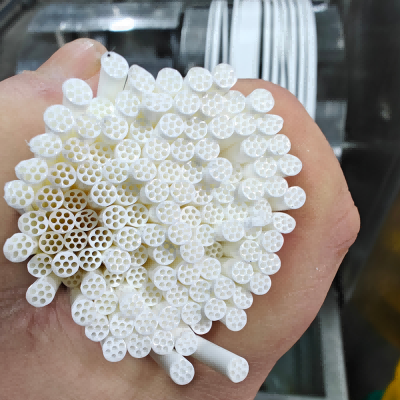

UltrafiltrationMembranes, with its unique advantages, plays a central role in the combination of physical, chemical and mechanical treatment methods.The quality of the raw water is an important factor in the selection of a suitable membrane, a major aspect of which is the concentration of solids in the water.
Specification
|
Module reference |
X250 XL 0.9 MB 38 W |
X250 XL 0.9 MB 60 W |
X250 XL 0.9 MB 80 W |
X250 XL 1.5 MB 25 W |
X250 XL 1.5 MB 40 W |
||
|
Active membrane area |
m2 ft2 |
38 410 |
60 645 |
80 861 |
25 270 |
40 |
430 |
|
Shipping weight |
kg lbs. |
36 79.4 |
48 105.8 |
59 130.1 |
35 77.2 |
47 |
103.6 |
|
Module type |
|
1 |
2 |
3 |
1 |
2 |
|
|
Module type |
1 |
2 |
3 |
|||||
|
Module length (L) |
mm |
inch |
985 ±1.5 |
38.78 |
1485 ±1.5 |
58.46 |
1720 ±1.5 |
67.72 |
|
Distance top / bottom feed port (L1) |
mm |
inch |
1100 ±3 |
43.31 |
1600 ±3 |
62.99 |
1834 ±3 |
72.20 |
|
Length with end caps (L2) |
mm |
inch |
1180 ±3 |
46.46 |
1680 ±3 |
66.14 |
1914 ±3 |
75.35 |
|
Dimensions |
||||
|
Module diameter (A) |
mm |
inch |
250 ±1.5 |
9.84 |
|
Distance feed top port - filtrate port (B) Outer diameter end cap coupling max. (C) Port length (D) |
mm mm mm |
inch inch inch |
190 ±1.5 295 40 ±1 |
7.48 11.61 1.57 |
|
Filtrate / Backwash port (d) |
|
inch |
|
2 |
|
Material |
|
|
Housing |
PVC-U white |
|
End cap |
PVC-U grey |
|
End cap coupling |
SS (EPDM sealing) |
X MEMBRANE was found in 2014. It is a professional manufacturer which engaged in wastewater industry and supply essential membranes to the engineering companies or the end user.
