X-HFU-2020N Ultrafiltration Membrane Module for Water Treatment
X-HFU-2020N replacement for Toray HUNF2020N Ultrafiltration Membrane Overview.
This filtration mode gives ultrafiltration membranes the advantages of easy operation and low energy consumption.
Item No :
X-HFU2022NOrder(MOQ) :
10Payment :
TransferProduct Origin :
Jiangsu,ChinaColor :
whiteShipping Port :
ShanghaiLead Time :
7-10daysWeight :
7.8kgX-HFU2020N UItrafiltration Membrane Module for Water treatment
Product description;

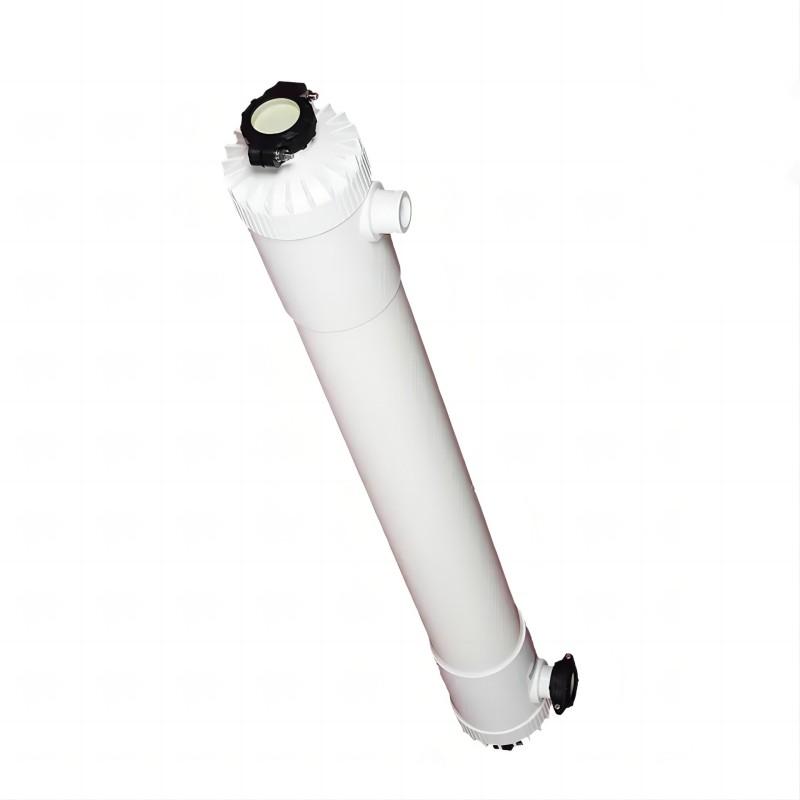

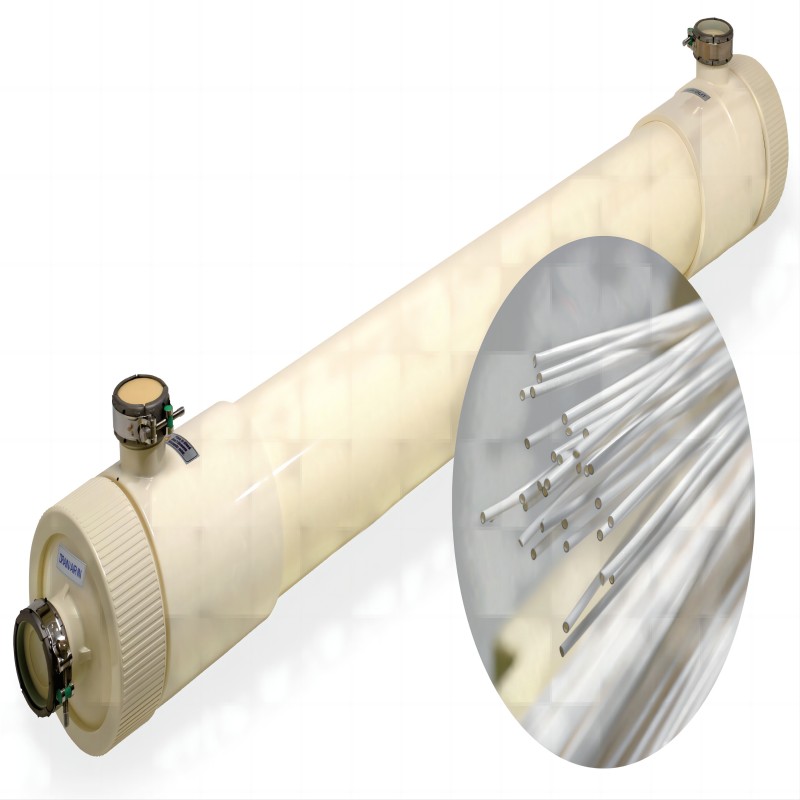

Hollow fiber (HF) pressure ultrafiltration (UF) membrane modules are made of PVDF (polyvinylidene fluoride), the most advanced hollow fiber membrane material with high mechanical strength and chemical stability.
|
Nominal aperture |
0.01mm |
|
Design flux |
8.0-2.6 cubic meters per hour |
|
Maximum feed temperature |
40 degress C |
|
Maximum feed pressure |
300kpa |
|
Feed pH Range Operation |
1-10 |
|
Nominal MWCO |
150,000large |
|
Feed pH range clean |
0-12 |
|
Feed pH range clean |
216mm |
|
Weight full of water |
110kg |
Conditions of Use:
·Maximum water inlet pressure: 300KPa (44psi)
·Maximum differential pressure across membrane: 2000KPa (29psi)
·Operating temperature range: 0-40℃
·PH range: filtration 1-10; chemical cleaning 0-12
|
X Hollow-fiber Membrane Module Specifications |
|||
|
Module Part Number |
HFU-2020 |
HFS-2020 |
|
|
Nominal pore size | µm |
0.01 |
||
|
Outer Membrane Surface Area | m2 (ft2) |
72 (775) |
72 (775) |
|
|
Maximum Feed Water Flow | m3/h (gpm) |
15 (66) |
12 (53) |
|
|
Maximum Backwash Flow | m3/h (gpm) |
16.8 (74) |
13.5 (59) |
|
|
Maximum Air Flow | Nm3/h (scfm) |
9 (5.3) |
9 (5.3) |
|
|
Filtration Method |
Pressure type / Outside to inside / Dead-end |
||
|
Dimensions |
Diameter | mm (in) |
216 (8.5) |
|
|
|
Length | mm (ft) |
2,160 (7.087) |
|
|
Weight |
Full of water |
110kg |
|
|
|
After draining |
67kg |
|
|
Materials
|
Membrane |
PVDF (Polyvinylidene fluoride) |
|
|
Casing / Protective Cylinder |
PVC (Polyvinychloride) |
||
|
Potting |
Epoxy resin or equivalent |
||
|
Cap & Nut (housing) |
Integrated |
|
|
Connection |
Top |
Housing joints 80A |
|
|
Bottom |
Housing joints 80A |
|
|
Side |
Housing joints 65A |
|
Maximum inlet pressure | kPa (psi) |
300 (44) |
|
|
Maximum backwash pressure | kPa (psi) |
300 (44) |
|
|
Normal operating trans-membrane pressure | kPa (psi) |
0–200 (0–29) |
|
|
Operating temperature range | °C (°F) |
0–40 °C (32–104 °F) |
|
|
pH range |
During filtration |
1–10 |
|
|
During cleaning |
0–12 |
Product advantages:
X PVDF hollow fiber membrane modules are used in various types of water treatment and can effectively remove microorganisms such as suspended solids and germs. Hollow fiber (HF) pressure ultrafiltration (UF) membrane modules are made of PVDF (polyvinylidene fluoride), the most advanced hollow fiber membrane material with high mechanical strength and chemical stability. The filtering mode is external pressure type and full volume filtering method. This filtration mode gives ultrafiltration membranes the advantages of easy operation and low energy consumption.

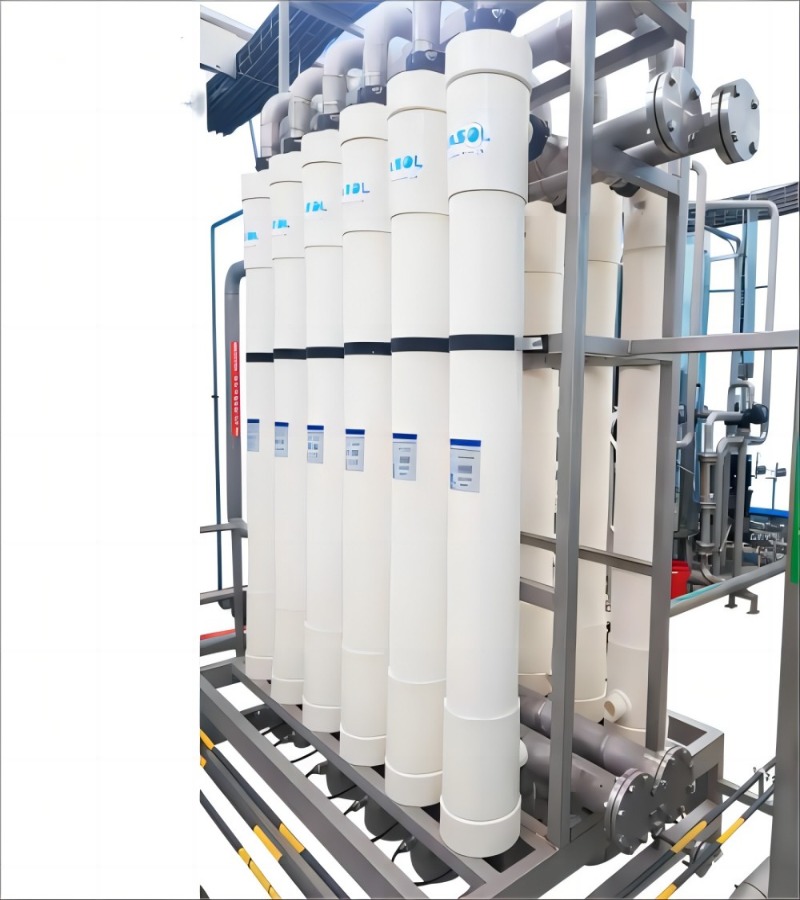

Applications: drinking water production, industrial water treatment, seawater desalination (for RO pretreatment)
X MEMBRANE was found in 2014. It is a professional manufacturer which engaged in wastewater industry and supply essential membranes to the engineering companies or the end user.
Address : No. 68-16, Shijiu Lake North Road, Chunxi Town, Gaochun District, Nanjing City, Jiangsu Province, China 210000
