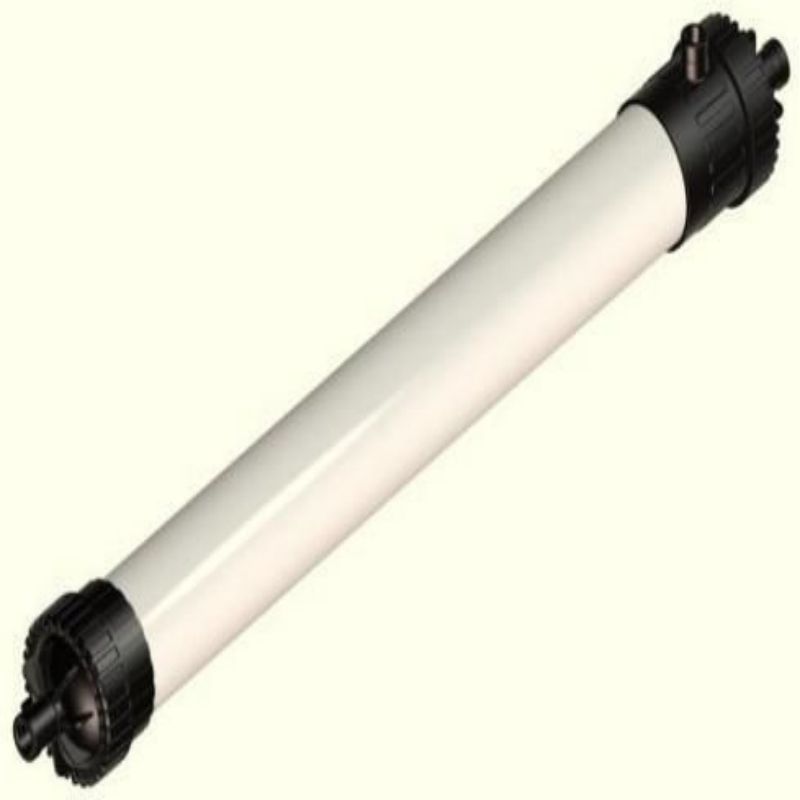

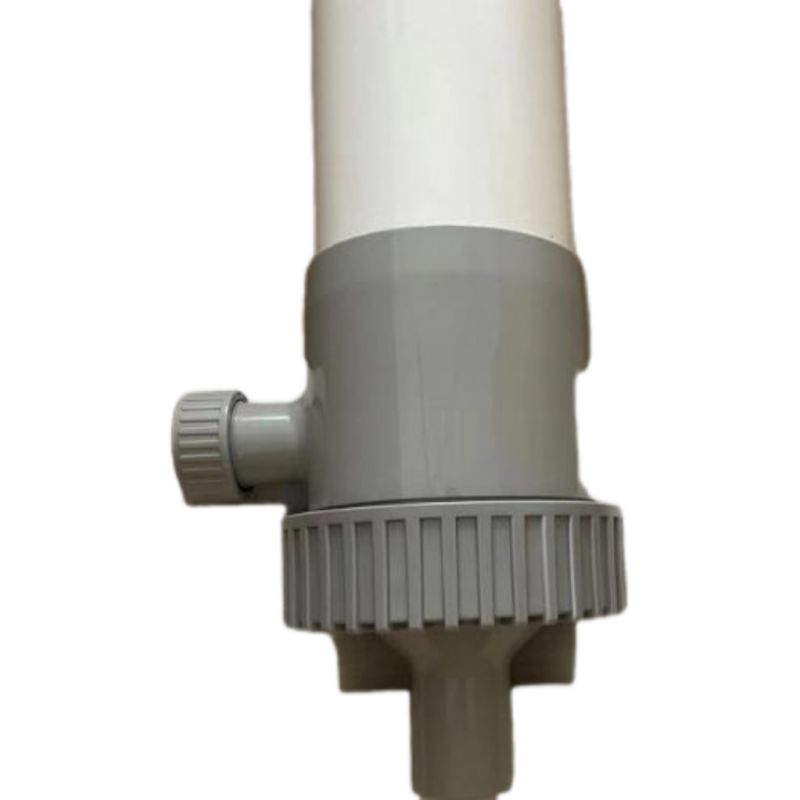

UF Membrane ZW1500 Veolia UF Water Treatment Membrane Filter
The X-UF-0770(ZW1500) Tips(Hot method) Membrane Inside-out Outside-in Pvdf Uf membrane . Each membrane module has a nominal membrane area of 55.7 square metres (600 square feet).metres (600 square feet)
Item No :
X-UF-0770Order(MOQ) :
10Payment :
TransferProduct Origin :
Jiangsu,ChinaColor :
WhiteShipping Port :
ShanghaiLead Time :
15daysWeight :
7.8kgUF Membrane ZW1500 Veolia UF Water Treatment Membrane Filter
Product Description
Product Specification
|
Permeate Capacity： 2.5-6.7m3/h |
|
Permeate Turbidity ： ≤0.1NTU |
|
Permeate SDI15： ≤2.5 |
|
Material: High Crystallinity PVDF |
|
Nominal Pore Size : 0.02µm |
|
Effective Membrane Area: 55.7㎡ |
|
Fiber Dimensions: ID(0.6mm), OD(1.2mm) |
|
Module Dimensions： Φ180m×1920mm |
|
Weight： 37KG（Empty）80K（water Filled） |
|
Typical Permeate Range： 45—120L/m3/h（25℃) |
|
Maximum Applied Feed Pressure： 3.5Bar |
|
Maximum Transmembrane Pressure 2.5Bar |
|
Maximum Feed Turbidity : 300NTU |
|
Temperature Range ： 1-40℃ |
|
pH Range： 1－11 for Operating /1－14 for Chemical cleaning |
|
Maximum Backwash pressure： 2.5Bar |
|
Backwash Range： 1.8m³/H/PCS |
|
Air Scour pressure： ≤2.5Bar |
|
Air Scour Rate： 3－8Nm³/h/PC |
|
Operating Mode Outside to Inside/ Dead end or Cross Flow |
|
Air Scour Frequency： Once every 20-60min |
|
Air Scour Duration: 20-60 Seconds |
|
Back wash Frequency: Once every 20-60min |
|
Back wash Duration： 30-90Seconds |
|
Cleaning Chemicals: NaCLO（>5000ppm）, NaOH（≤5%）,HCl, H2SO4 or Citric Acid |
X-UF-0770 is an outside-in feed, hollow-fiber, ultrafiltration membrane. Our proprietary PVDF membrane is strong, fouling-resistant and easy to clean. X-UF-0770 will consistently deliver the highest quality effluent water. Key Product Features:
1.High solids tolerance: hollow-fibre outside-in feed membrane is ideal for treating waters with high solid concentrations.
2.Resilient: handles feed water turbidity spikes, variations in water quality and coagulant use.
3.Versatile: ability to retrofit other ultrafiltration and microfiltration systems.
4.Simple: easy to install, easy to operate, easy to maintain.
5.Customizable: the same module works as a standalone unit in a rack or in our integrated header solution.
Applications:
An extremely versatile product, the X-UF-0770 membrane is ready for a huge variety of source waters and applications. Contact us for more information on how X-UF-0770 can help you achieve high quality water in a compact footprint. Application highlights:
1.Drinking water treatment.
2.Industrial process water treatment.
3.Tertiary filtration.
4.RO pre-treatment for brackish and seawater.
5.Custom and package plant systems available.
