Replace the Hydra CAP MAX80 105m2 Hollow fiber PVDF High Tensile Strength Membrane

 Replace the Hydra CAP MAX40 105m2 Hollow fiber PVDF High Tensile Strength Membrane

Product description:

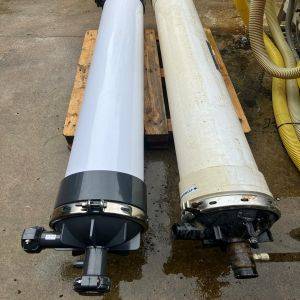

The development of the XUF1050C model is to replace the Hydra CAP MAX40/60/80, which is compatible in size to ensure that there is no need for pipeline and accessory changes. MSFUF1050C/MSFUF107OC/MSFUF1090C is made of hollow fiber PVDF material, which has high tensile strength. The 0.08um pore size provides the same water production flux as the original Hydranautics ultrafiltration module.

Specification:

Module style                                                 XUF1090C

Membrane area                                            105m2

PVDF material                                              PVDF

Pore size(μm)                                               0.08

Filament ID/OD(mm)                                    0.6/1.2

Filtration Method                                        Outside-in

L(mm)                                                        1,364.9

L1(mm)                                                      1,257.3

L2(mm)                                                      1,135.5

L3(mm)                                                      172

D1(mm)                                                      250

D2(mm)                                                      290

Size of inlet/producer/thickness port                                   DN 50 (Victaulic)

Membrane material                                                             UPVC

Fitting material                                                                     UPVC

End seal material                                                                 Epoxy resin

Maximum inlet pressure(bar)                                               3.0

Design Flux (LMH/m/h)                                                      34-110(1.8-5.5)

Maximum transmembrane pressure difference                 2.0bar

Operating Temperature(℃)                                               5-40

pH range                                                                           2-10

Turbidity of produced water(NTU)                                    ≤0.1

Product Features

0.08um accuracy ensures the stability of the produced water quality

Modified hydrophilic PVDF UF MEMBRANE is easy to wet

Suitable for influent conditions with complex water quality

External pressure filtration can reduce pre-treatment requirements

Strong tolerance to Chinese characters

Low pressure operation, energy conservation and consumption reduction

Standard components are easy to repair and replace

Typical Applications

Pretreatment of reverse osmosis system

Municipal sewage treatment

NSF Standard Drinking Water Preparation

Industrial wastewater treatment

Reclaimed water reuse treatment

Surface water treatment
