High Filtration Precision Modified PVDF UF Membrane X Membrane
Ultrafiltration membrane separation technology introduction
Ultrafiltration membrane is a separation process based on the principle of sieving, which uses pressure as the driving force to achieve mechanical separation.
Item No :
X UFOrder(MOQ) :
10Payment :
TransferProduct Origin :
ChinaColor :
whiteShipping Port :
ShanghaiLead Time :
15daysWeight :
6.8kgHigh Filtration Precision Modified PVDF UF Membrane X Membrane
Product Description:

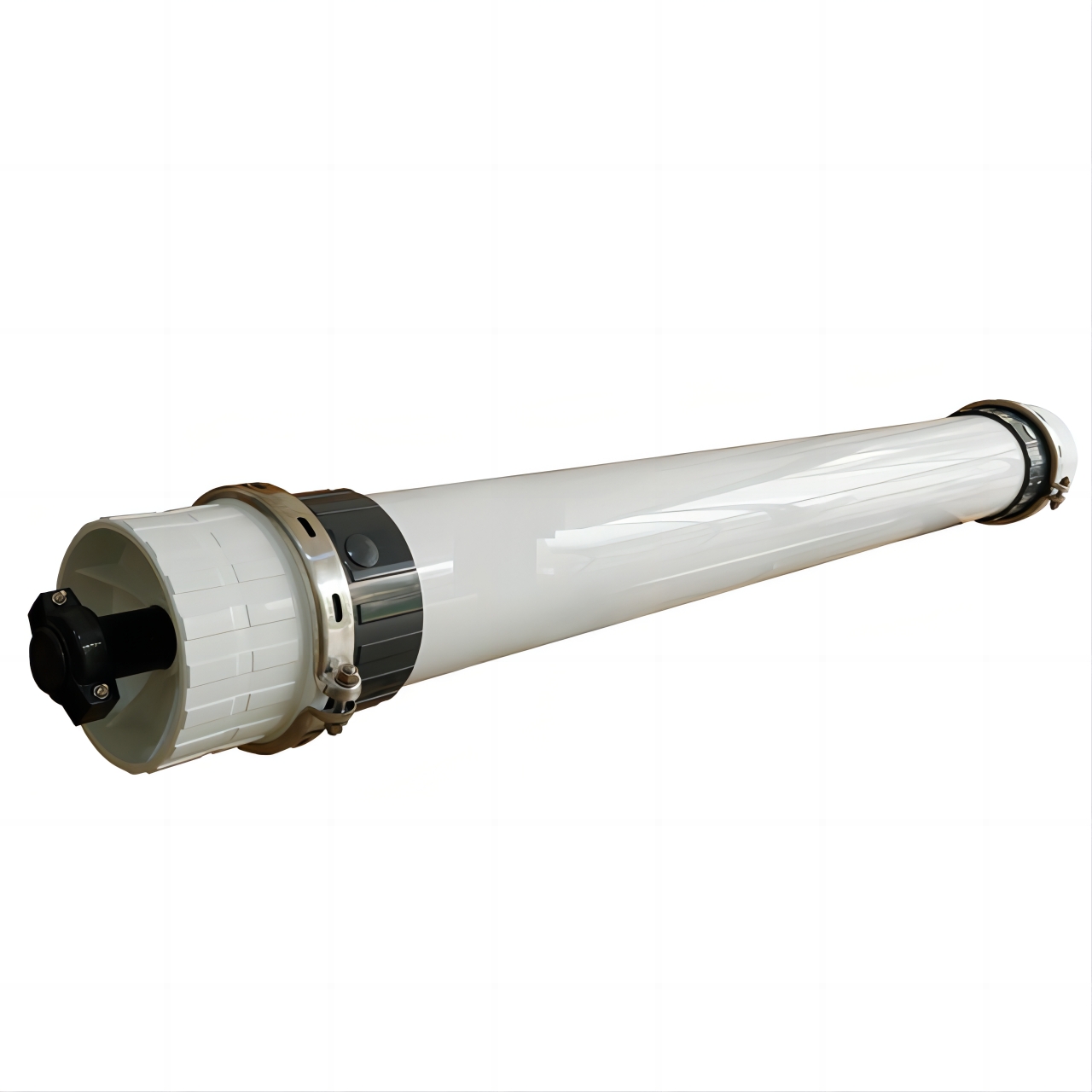

PVDF hollow fibre ultrafiltration membrane has the advantages of strong oxidation resistance, pollution resistance and good cleaning performance. It is widely used in the wastewater treatment industry.
Specification:
|
UF model |
Mat erial |
Operati on Mode |
Lateral Center distance (L1) |
Module dimensio ns |
Effecti ve membr ane area |
Design flux (for most feed water)/m³/ 0.1Mpa 25℃ |
Nomi nal pore size |
|
X UFA90 |
PES |
Inside-ou t |
910 |
90*1100 |
4.5 |
50-80L(L/ ㎡ · h) |
0.01μ m |
|
X UFA160 |
990 |
160*1330 |
20 |
||||
|
X UFA200 |
1000 |
200*1415 |
25 |
||||
|
X UFA225 |
1600 |
225*1730 |
40 |
||||
|
X UFA225-1 |
1630 |
225*1760 |
40 |
||||
|
X UFA250 |
1600 |
250*1715 |
50 |
||||
|
X UFA273 |
|
273*1830 |
80 |
||||
|
X UFA219 |
1742 |
219*1902 |
40 |
||||
|
X UFA315 |
780 |
315*1302 |
55 |
||||
|
X UFA315 |
1300 |
315*1822 |
80 |
||||
|
X UFA90-1 |
|
90*1010 |
4 |
||||
|
X UFA200-1 |
|
200*1016 |
18 |
||||
|
X UFA200-2 |
|
200*1527 |
40 |
||||
|
X UFB-160 |
Outside-i n |
990 |
160*1330 |
30 |
50-80L(L/ ㎡ · h) |
0.01μ m |
|
|
X UFB160-2 |
1386 |
160*1810 |
40 |
||||
|
X UFB225 |
1600 |
225*1730 |
60 |
||||
|
X UFB225-1 |
1630 |
225*1760 |
60 |
||||
|
X UFB250 |
1600 |
250*1715 |
75 |
||||
|
X UFB225-3 |
1630 |
225*1860 |
50 |
||||
|
X UFB225-4 |
2130 |
225*2360 |
75 |
||||
|
X UFC90 |
PAN |
Inside-ou t |
910 |
90*1100 |
4 |
60-120L(L/ ㎡ · h) |
0.02μ m |
|
X UFC160 |
990 |
160*1330 |
10 |
||||
|
X UFC200 |
1000 |
200*1415 |
18 |
||||
|
X UFC225 |
1600 |
225*1730 |
30 |
||||
|
X UFC225-1 |
1630 |
225*1760 |
30 |
||||
|
X UFC250 |
1600 |
250*1715 |
35 |
||||
|
X UFC90-1 |
|
90*1010 |
3.5 |
||||
|
X UFC200-1 |
|
200*1010 |
15 |
||||
|
X UFD90 |
PVD F |
Outside-i n |
910 |
90*1100 |
9 |
40-100L(L/ ㎡ · h) |
0.08μ m |
|
X UFD160 |
990 |
160*1330 |
30 |
||||
|
X UFD160-1 |
1386 |
160*1810 |
40 |
|
Parameters: |
||||
|
Material` |
PES |
PVDF |
PAN |
|
|
Module |
Inside-out |
Outside-in |
Outside-in |
Inside-out |
|
Membrane diameter ID/OD(mm) |
1.0/ 1.6 |
0.7/ 1.3 |
0.7/ 1.3 |
1.4/2.2 |
|
Maximum feed turbidity |
＜50NTU |
＜100NTU |
＜80NTU |
|
|
Maximum chlorine resistance |
Continuously 50ppm Instantaneously 500ppm |
Continuously 200ppm Instantaneously 2000ppm |
Continuously 5ppm Instantaneously 100ppm |
|
|
Temperature range |
5-45℃ |
|||
|
pH range |
2- 10 |
2- 12 |
2- 10 |
|
|
Operation module |
Cross flow or dead-end |
|||
|
Maximum permeate Flux |
120L/㎡ · h |
150L/㎡ · h |
150L/㎡ · h |
|
|
Maximum feed pressure |
0.5Mpa |
|||
|
Maximum trans membrane pressure |
0.2Mpa |
|||
|
Maximum back wash pressure |
0.25Mpa |
|||
|
Back wash frequency |
15-60Min |
|||
|
Back wash duration |
30-60sec |
||
|
Back wash flux |
100-360L/㎡ · h |
||
|
Chemical enhanced backwash frequency |
1- 15days |
||
|
Chemical enhanced backwash duration |
1- 10min |
||
|
Chemical cleaning frequency |
30- 180days |
||
|
Chemical cleaning duration |
90-480min |
||
|
Chemical cleaning chemicals |
NaCIO H2O2(500ppm), NaOH(pH≤12) ，HCI(pH≥2) |
NaCIO H2O2(2000ppm), NaOH(pH≤12) ， HCI(pH≥2) |
NaCIO H2O2(100ppm), NaOH(pH≤12) ， HCI(pH≥2) |
Product Advantages;
The ultrafiltration membrane has the characteristics of selective separation, which can retain the mineral elements that are beneficial to the human body.
The equipment is compact in structure, small in floor space and easy to operate. It has strong applicability to water quality and has a wide range of applications.
Applications
Applicable Industries;Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Energy & Mining, Advertising Company, water treatment.
X MEMBRANE was found in 2014. It is a professional manufacturer which engaged in wastewater industry and supply essential membranes to the engineering companies or the end user.
