Flat MBR Membrane Module KUBOTA RW400 510 Cartridge

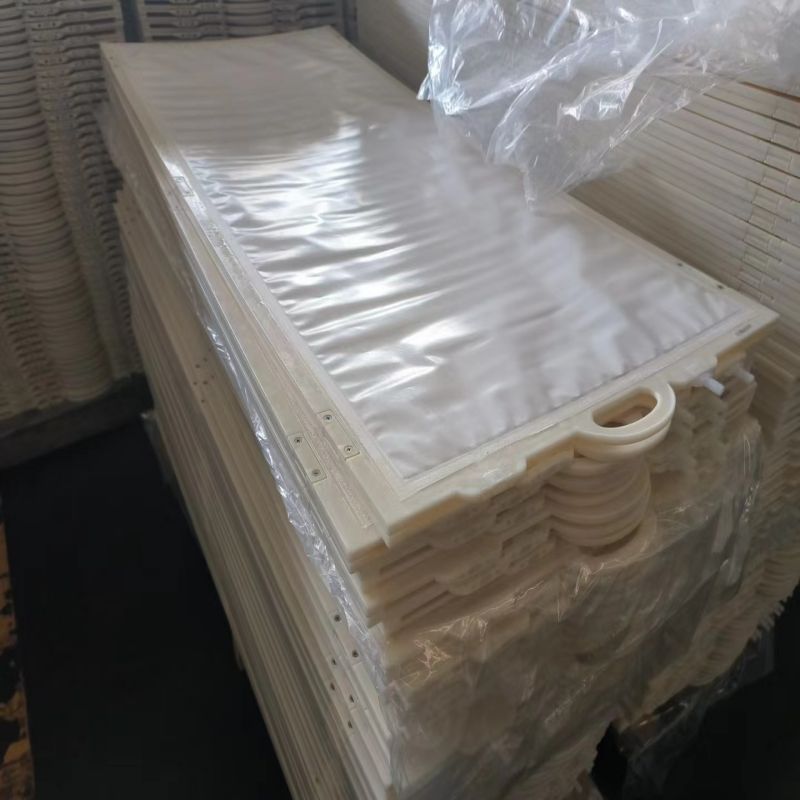

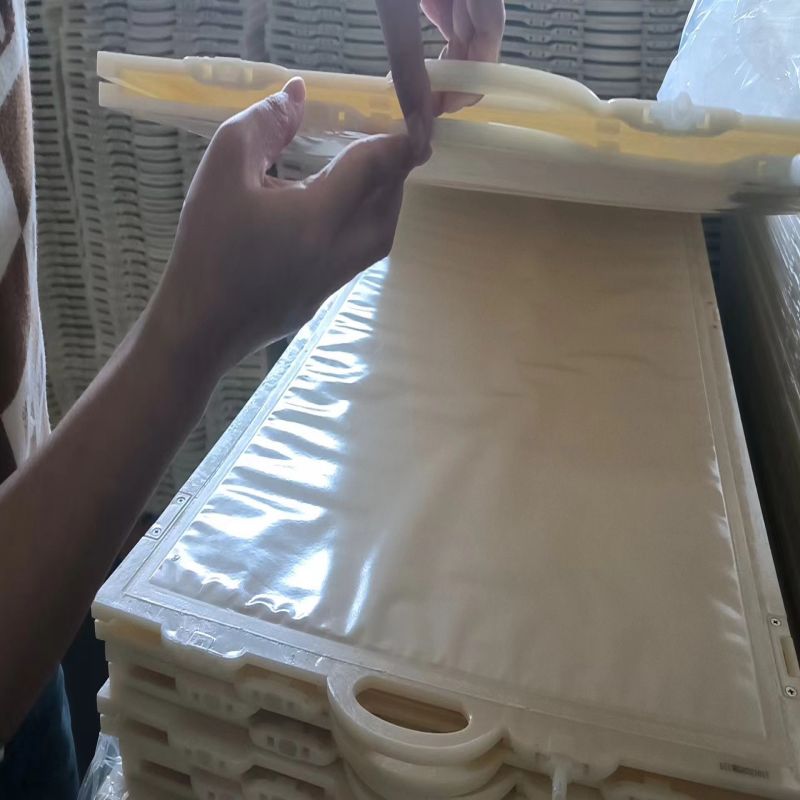

Flat sheet membrane Ultrafiltration plate membrane consists of diaphragm, interlining, support plate and water intake. The core material of the component is polyvinylidene fluoride, and the supporting plate is propylene Cyanide-butadiene-styrene copolymer, average membrane pore size 0.1um.

Easy Maintenance & High Permeability. Flat Sheet “MEMBRAY” Delivers Smart MBR Process. High Chemical Resistance & High Mechanical Strength PVDF (polyvinylidene fluoride) gives the membrane superior physical strength and chemical resistance. High Water Permeability & High-quality Effluent Numerous and uniform small pores (0.08 micrometer) enable higher quality of treated water and high fouling resistance.

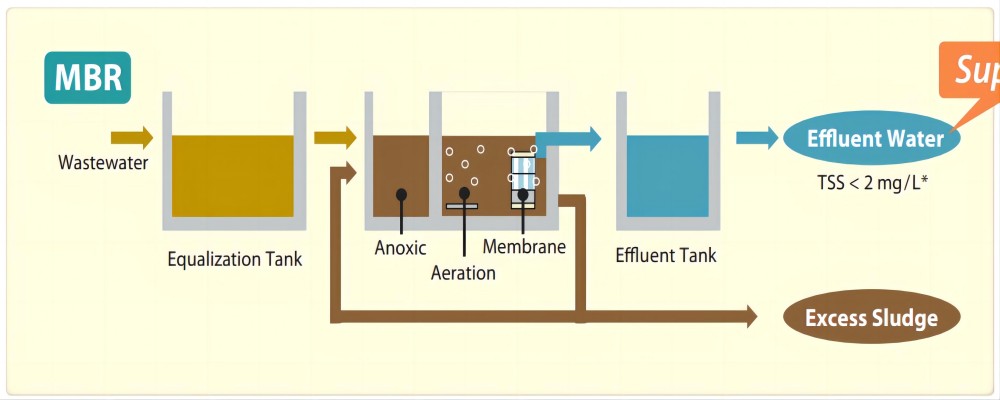

X Membrane can replace the KUBOTA RW400, Cartridge 510, 510 ES, 515 for RW400 The Membrane Bioreactor (MBR) process is a proven wastewater treatment method which combines a biological treatment process and a membrane filtration process for final solid-liquid separation. The MBR perfectly eliminates the secondary clarifier and carry-over of the activated sludge. Therefore, the concentration of the activated sludge becomes higher and process tank volume becomes smaller compared to Conventional Activated Sludge (CAS) process.
