Equivalent Products to Asahi Kasei Microza Ultrafiltration UHS640A and UHS620A

Home

XUF-Equivalent Asahi Kasei Microza 620A/620AB

Equivalent Products to Asahi Kasei Microza Ultrafiltration UHS640A and UHS620A

Equivalent Products to Asahi Kasei Microza Ultrafiltration UHS640A and UHS620A

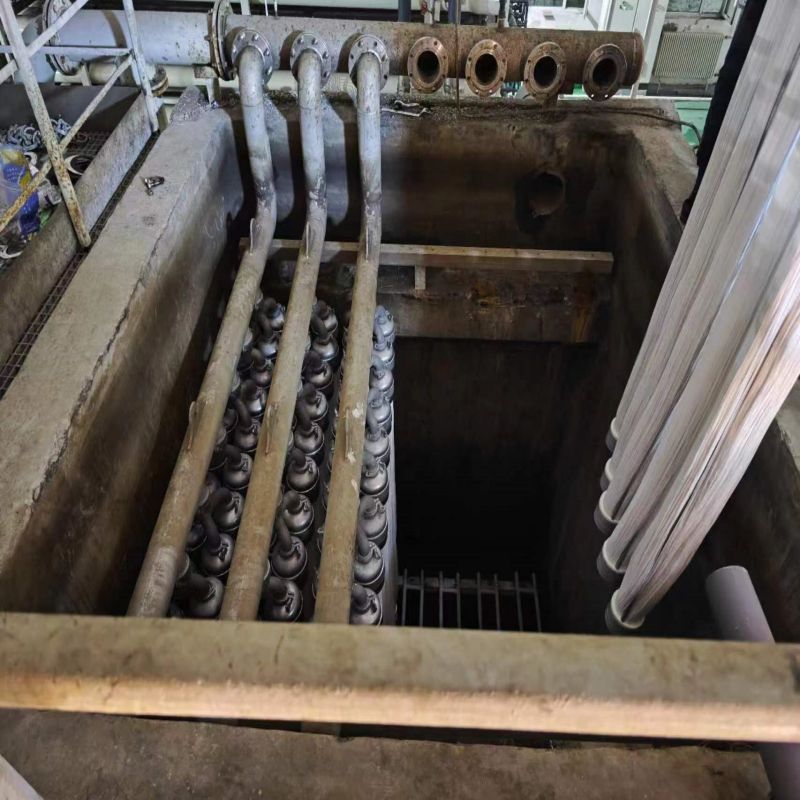

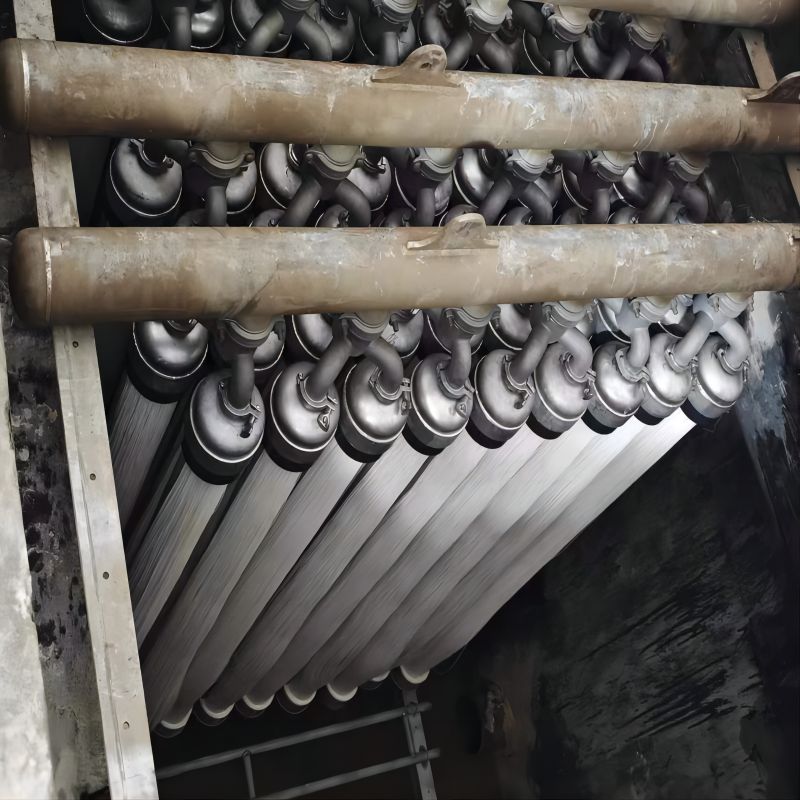

X membrane module adopts PVDF hollow fiber ultrafiltration membrane prepared by advanced thermotropic phase separation method, with homogeneous sponge structure, featuring high strength, large flux, chemical resistance and recoverability. Submerged membrane module skid set aeration pipeline, water production pipeline in one, the whole submerged in the filtration of water, membrane operation environment visualization is conducive to the stable operation of the membrane.

  • Item No :

    UHS640A
  • Order(MOQ) :

    10
  • Payment :

    TT
  • Product Origin :

    CHINA
  • Color :

    WHITE
  • Shipping Port :

    SHANGHAI
  • Lead Time :

    10
  • Weight :

    45KG
New Products

Asahi Kasei Ultrafiltration Membranes is highly integrated, easy installation of components, reasonable design of skid frame, uniform aeration, large water production and small footprint. Hydrophilic treatment, so that its low-pressure pumping low energy consumption, the outer frame Submerged Ultrafiltration membrane shell design, effective protection of membrane filament resistant to flushing; outer frame membrane shell design, effective protection of membrane filament resistant to impact; open membrane shell design, so that its dirt-holding capacity is strong and easy to clean, to protect the membrane system for long-term stable operation.



Specifications



MBR module

Type

X-SM167R(UHS640A)

X-SM167(UHS620A)

Material

PVDF

PVDF

Membrane area(m2)

35

50

Pore size (um)

0.1

Fiber I/O diameter (mm)

0.7/1.3

Way

TIPS

Module size

Dimension (mm)

167*1553L

167*2164L

Connection size

M65*3 Threaded connection

Material

Housing Material

U-PVC//ABS



Operation conditions



Conditions

Temperature range

1-45℃

Continuous pH range

2-11

Operation flux (LMH)

20-60

Backwash flux (LMH)

30-120

Air flow (Nm3/h,piece )

6-12

Chemical cleaning pH range

2-14

Operating TMPA

-0.03

Max. TMPA

-0.08

Max. Backwash pressure (Mpa)

0.25

Product capacity

Permeate Turbidity (NTU)

<=0.2



Production and water pollution index (SDI15)

<=3.0

Product Features and Advantages

Long service life

High tensile strength

Double-layer encapsulation technology



Cost savings

Low pre-treatment requirements

High flux of produced water, high water recovery rate

Hydrophilic treatment, low pressure pumping, low energy consumption




Good quality of produced water

Homogeneous sponge structure

Not easy to break fiber



Highly integrated

Minimal footprint

High fill rate membrane system design



Long cleaning cycle

Cleaning pH value 2-11

Resistant to 5000mg/sodium hypochlorite cleaning



Easy installation

Integration of aeration and water collection, simplify piping

Integral suspension, easy to disassemble
