UF uses hydrostatic pressure to force water through a semi-permeable membrane. This technology uses an ultrafiltration membrane barrier to exclude particles 0.02 to 0.05 microns, including bacteria, viruses, and colloids, meeting increasingly stringent water-quality standards around the world, and providing a stable, reliable, and consistent water quality.

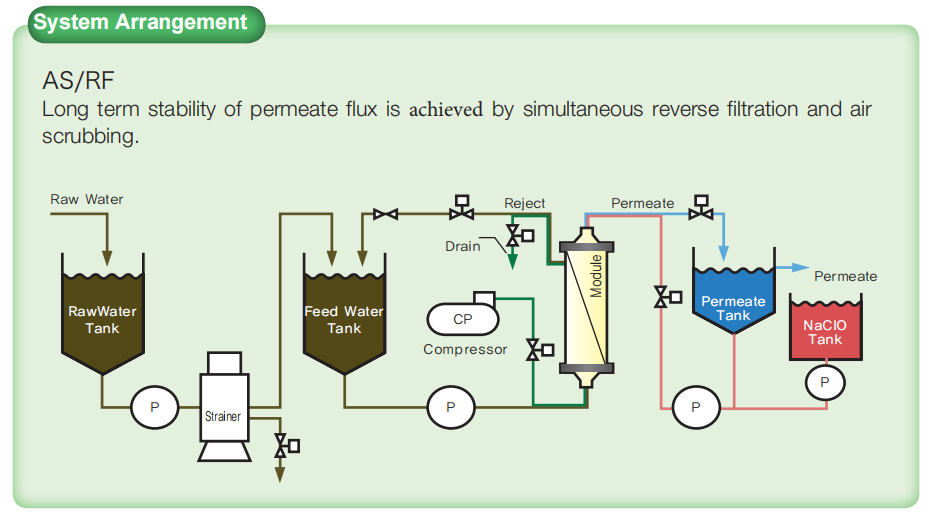

The membranes work with low pressure, which results in lower operating costs. In addition, they are very effective as a pretreatment for reverse osmosis, and also have a backwashing system, which gives them a longer life span.
Two of our sold-well UF:
|
UFcOA2860
|
UFcOA2880
|
Size(mm)
|
225*1860
|
225*2360
|
Centre Distance(mm)
|
1630
|
2130
|
Membrane Material
|
PVDF(polyvinylidene fluoride)
|
Active membrane area(㎡)
|
50
|
77
|
Nominal Pore Size
|
0.03μm
|
Design Flux(m³/hr)
|
50-80
|
Operating Mode
|
Outside-in
|
Shell Material
|
PVC-U
|
Connecting Pipe Specification(Φ)
|
50
|
Operating Temperature
|
5-40℃
|
Operating Pressure
|
≤0.3 Mpa
|
pH Range
|
2-10
|
Molecular Weight Cut-Off(Dal)
|
100000
|
UF offers: high operating flux, simple operating process, durable membrane structure, better effluent quality, smaller space requirements, and ease of automation.
