DTRO membrane, short for Disc Tube Reverse Osmosis membrane, is an important membrane technology with good treatment effect on high concentration wastewater. It is widely used in fields such as landfill leachate, industrial, chemical, and pharmaceutical wastewater. The reverse osmosis membrane sheet and the hydraulic flow guide disc are stacked together. Compared with traditional reverse osmosis, DTRO has wider channels, shorter processes, and high-speed turbulent flow characteristics, which can delay the occurrence of membrane blockage problems and increase the service life of the membrane.
Item No :
MP9.0-RO4Order(MOQ) :
1Payment :
TTProduct Origin :
CHINAColor :
GREENShipping Port :
SHANGHAILead Time :
10Weight :
70KGDTRO Membrane Technology Major Advancement in the field of Membrane Module Technology
Product Description:

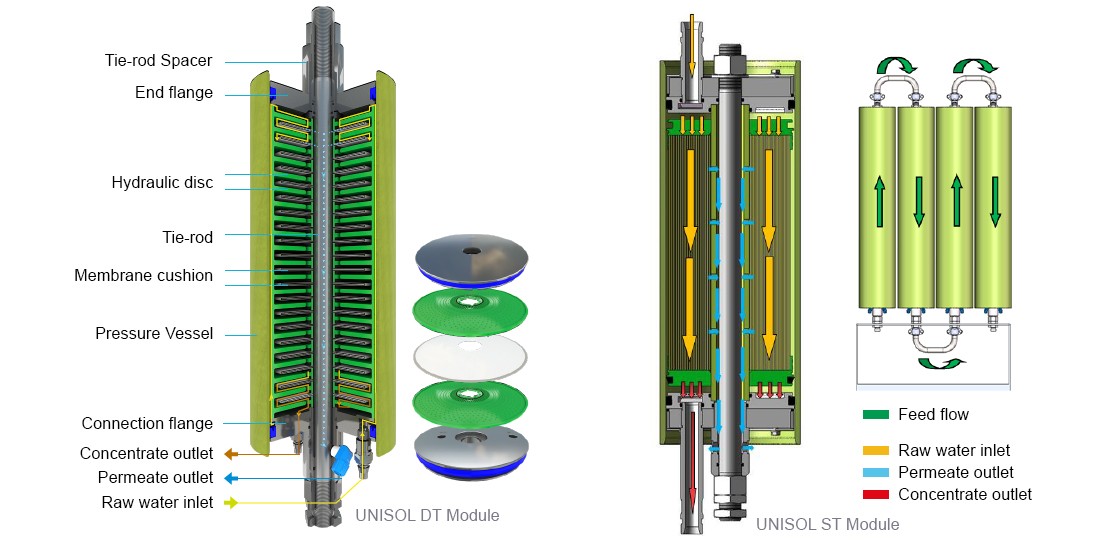

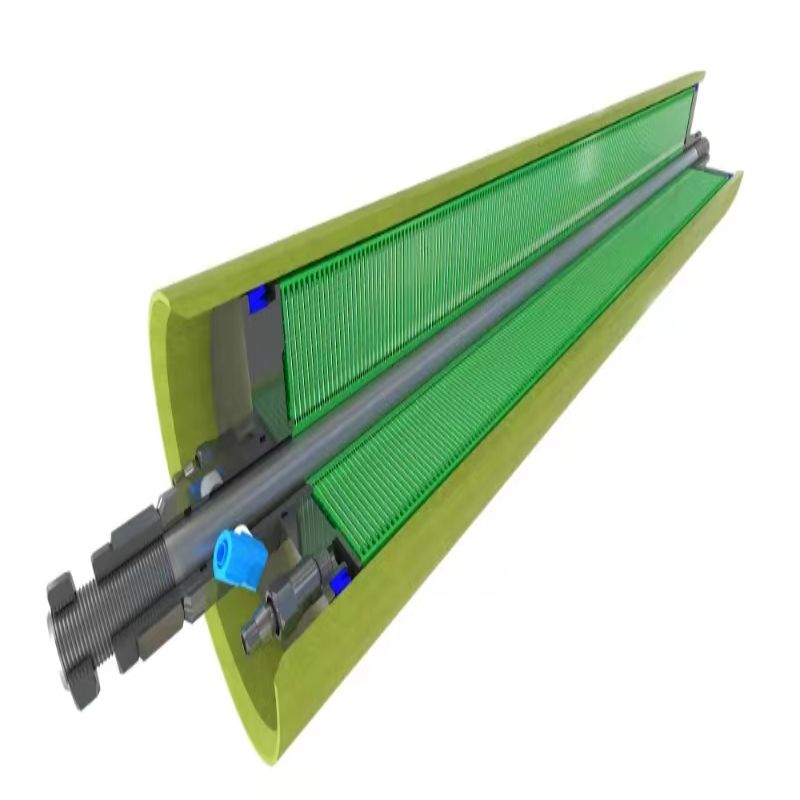

The reverse osmosis membrane and hydrofoil stacked together, with the center rod and the end plate fixed, and then placed in pressure casing, the formation of a membrane column. DTRO overcome the shortcomings of the general reverse osmosis system in the leachate treatment easy to plug, make the system more stable, lower operating costs. DT membrane column life of up to three years.
Specification:
| Product model: MP9.0-RO4 | |
| Product parameters: | |
| Max. feed side pressure drop: | 9bar |
| Max Opreating Pressure : | 90bar |
| Effective Membrane Area: | 9.405m2 |
| Temperature Max: | 3-11 (Operating) 2-12 (CIP) |
| Wet Weight: | 70kg |
| Rejection: | 99% |
| Flux: | 250L/H |
| Test conditions： | |
| Inlet Pressure | 65±1bar |
| Temperature | 25 ± 3 ℃ |
| Feed Flow | 800±50L/h |
| Conductivity | 48000 ± 1000us/cm (NaCl solution) |
Advantages of DTRO:
Minimization of membrane scaling and fouling: The DTRO system uses short feed flow path sand high-packing densities to minimize concentration polarization and physical flow impediments. Hence, the scaling and fouling are reduced while high energy efficiency is maintained.
Increased life of Membrane: Due to decrease in fouling and scaling compare to spiral wound membranes, Disc Type Reverse Osmosis ('DTRO') membranes have longer life.
Best Suited Technology for Waste water and Effluent Application: The DTRO membranes are able to cop up with high DTI limit and high BOD/COD contents and hence the system can be operated with very minimal pre-treatment.
Savings in membrane replacement cost: Spiral wound membranes are sealed and elements to be replaced completely. Disc Type Reverse Osmosis ('DTRO') membranes can be replaced as individual sheets thereby saving.
Easy access to all membranes: DTRO system can be opened and closed easily for inspection replacement and other activities.
Applications of DTRO:
Leachate water treatment
Effluent treatment API, formulation plant & combined effluent from pharmaceuticals industry
Picking & oily waste treatment in steel industry.
Metal recovery waste recycle.
Tannery effluent treatment & recycling.
High cod/bod waste water treatment.
Backwash recovery and recycling.
Treatment and re use of leachate from landfills
Effluent treatment from textile and dyeing industries.
Common and combined effluent treatment.
Recycling of spend wash and bio machination.
Reject treatment from spiral RO plant.
DM plant waste recycling.
Hazardous chemical wastewater recycling.
