Core Technology and Optimization of RO Membrane Systems

Reverse osmosis (RO) membrane technology is crucial for water treatment, widely applied in seawater desalination and pure water production. This blog will discuss the technical principles, key parameters, and optimization strategies of RO systems.

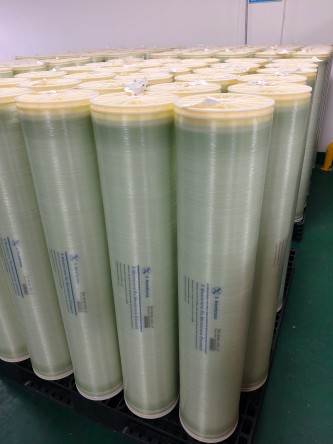

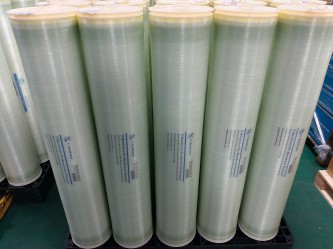

1. Basic Structure and Performance of RO Membranes

RO membranes are semi-permeable, with pore sizes smaller than 0.0001 microns, capable of blocking most dissolved salts and organic compounds. Common membrane materials include:

• Polyamide Composite Membranes: Known for high salt rejection rates and excellent mechanical stability.
• Cellulose Acetate Membranes: Lower chemical stability but effective under low pH conditions.

2. Working Principle of RO Systems

RO technology uses high pressure to drive water through the membrane, separating solute and solvent. The permeate side maintains low solute concentration, while the concentrate side accumulates dissolved contaminants.

Key Technical Parameters:

• Operating Pressure: Must exceed the solution's osmotic pressure, with seawater desalination systems typically operating at 55-70 bar.
• Recovery Rate: The ratio of produced permeate to total feed water; excessively high recovery rates can increase scaling risks.
• Salt Rejection Rate 99.6%: A primary performance indicator, generally exceeding 99%.

3. Common Challenges and Solutions

• Fouling and Scaling: RO membranes often face challenges from organic, inorganic, and biological fouling. Solutions include pre-treatment, membrane cleaning, and anti-scaling agents.
• Pressure Control: The system must operate within designed pressure limits to prevent membrane damage.

System Optimization Strategies:

• Multi-stage Membrane Array Design: Implementing staged pressure reduction to enhance overall recovery and system efficiency.
• Feed Water Pre-treatment: Using microfiltration or ultrafiltration to reduce suspended solids and organic loads.
• Membrane Cleaning Cycle: Optimizing cleaning frequency to reduce chemical use and system downtime.
